Rear Window Defogger Relay Connector End View

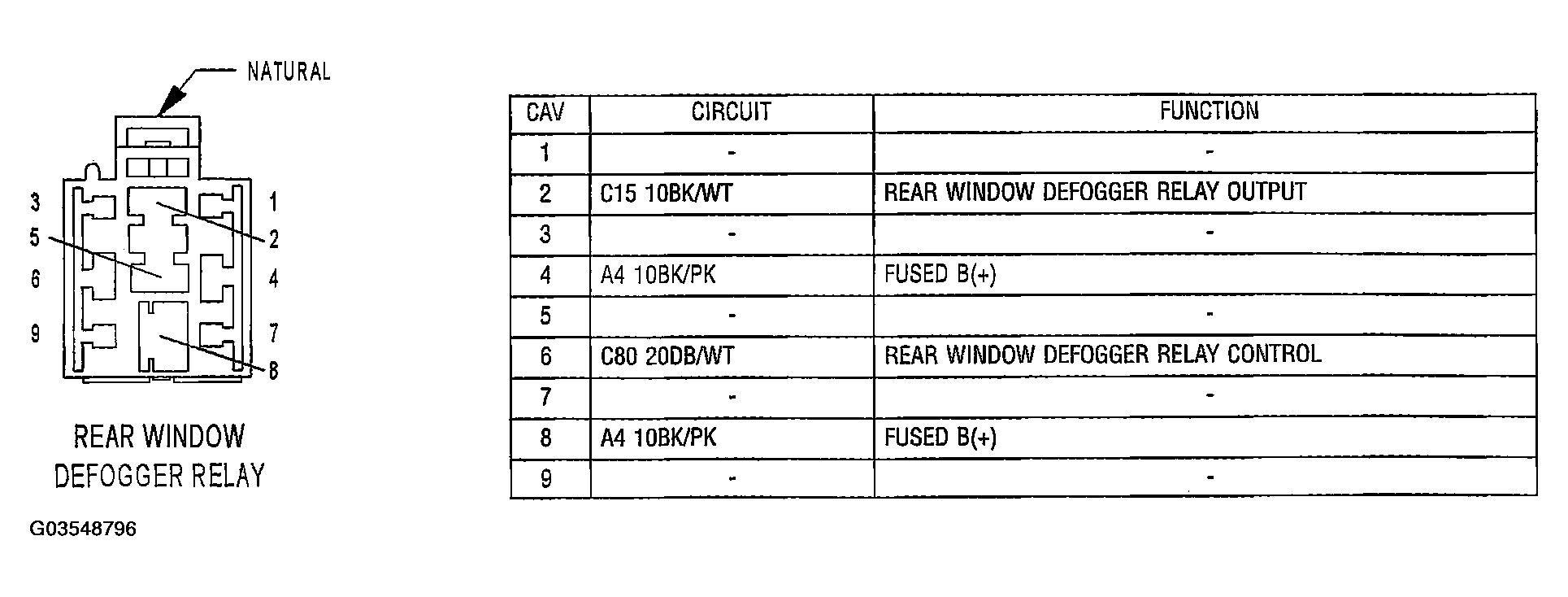

Fig 1: Rear Window Defogger Relay
G03548796Courtesy of CHRYSLER GROUP, LLC
