Rear Window Defogger/Antenna Module Connector End View

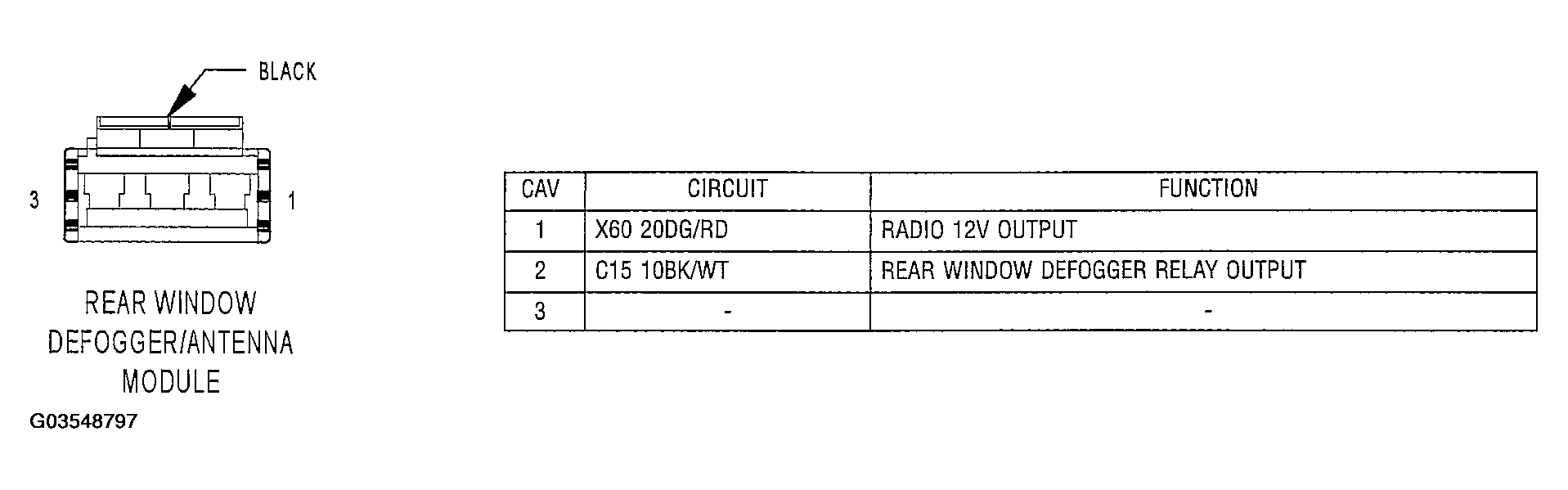

Fig 1: Rear Window Defogger/Antenna Module
G03548797Courtesy of CHRYSLER GROUP, LLC
