Right Rear Wheel Speed Sensor Connector End View

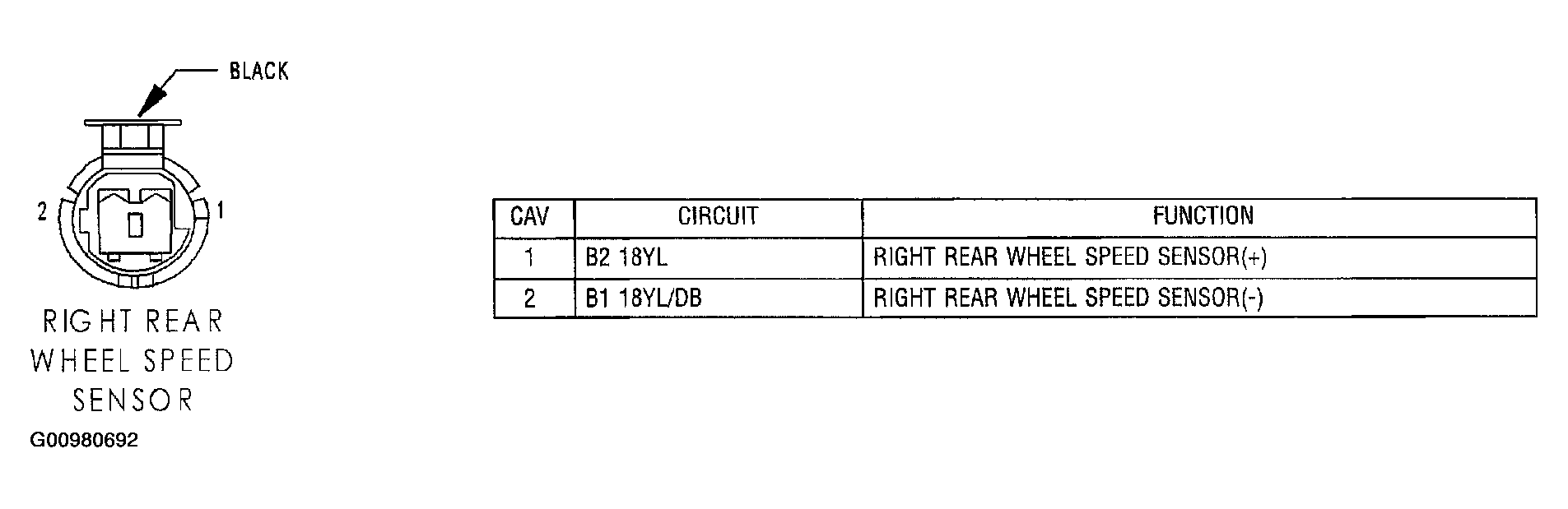

Fig 1: Right Rear Wheel Speed Sensor
G00980692Courtesy of CHRYSLER GROUP, LLC
