Right Side Impact Airbag Control Module Connector End View
Right Side Impact Airbag Control Module Connector End View

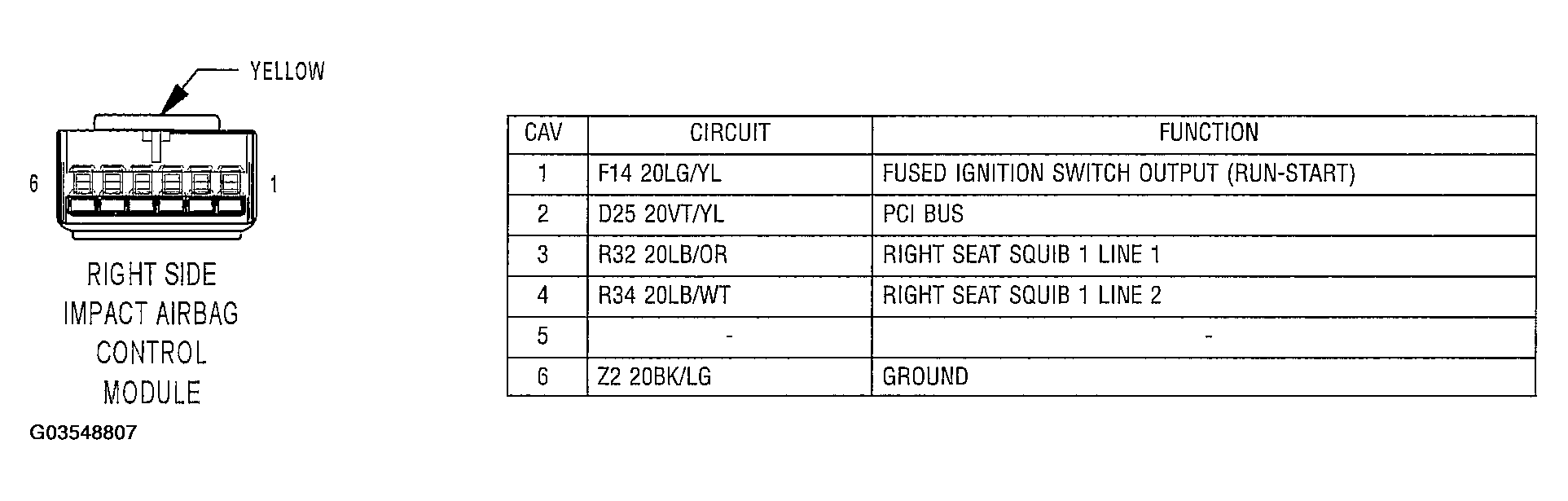

Fig 1: Right Side Impact Airbag Control Module
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
