Speed Control Servo Connector End View
Speed Control Servo Connector End View

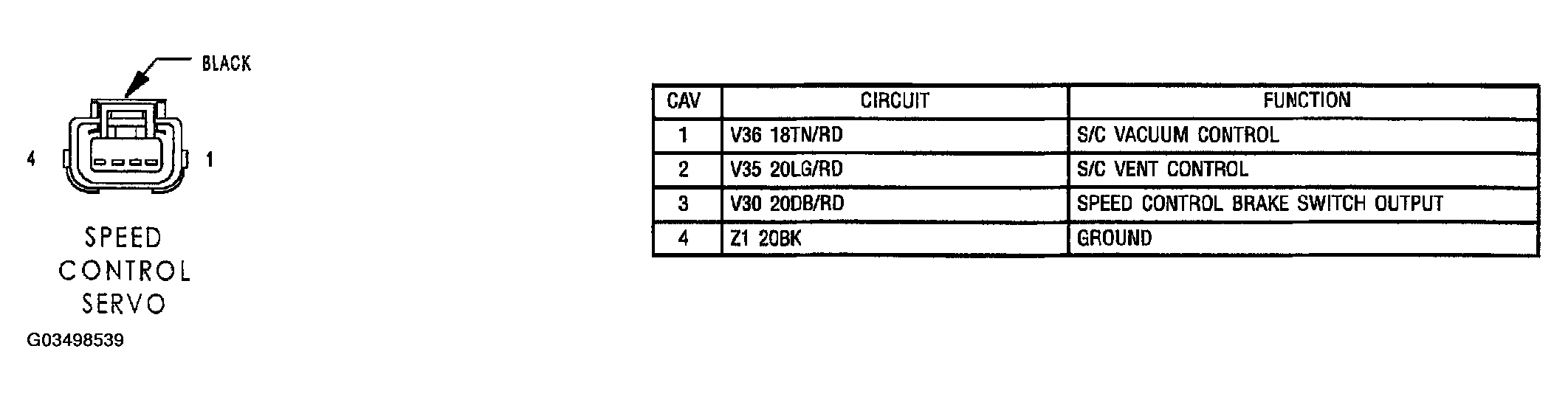

Fig 1: Speed Control Servo Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
