Throttle Position Sensor Connector End View (2.7L)

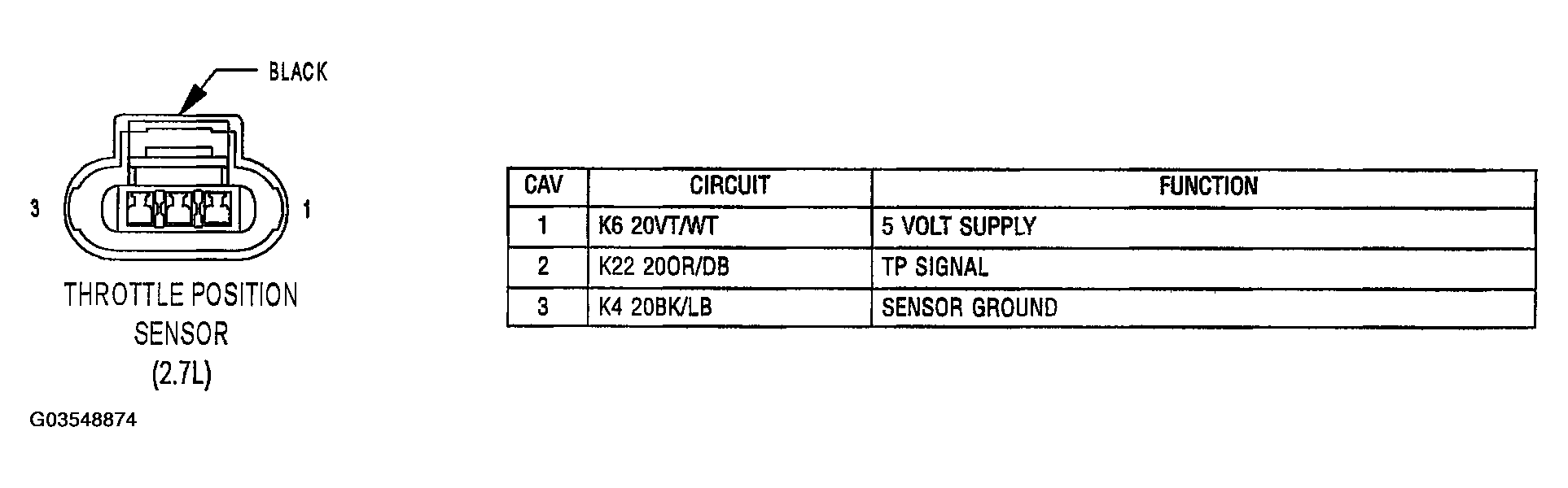

Fig 1: Throttle Position Sensor Connector End View (2.7L
G03548874Courtesy of CHRYSLER GROUP, LLC
