Traction Control Switch Connector End View

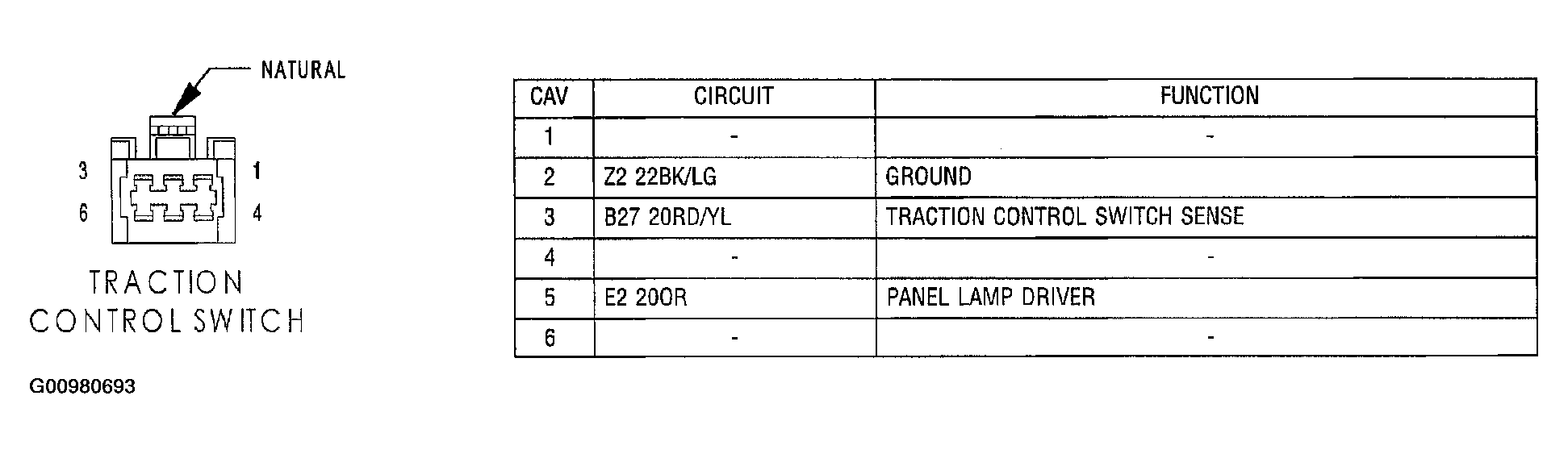

Fig 1: Traction Control Switch
G00980693Courtesy of CHRYSLER GROUP, LLC


Fig 1: Traction Control Switch Connector End View
G03548842Courtesy of CHRYSLER GROUP, LLC
