Right Front Wheel Speed Sensor Connector End View
Right Front Wheel Speed Sensor Connector End View

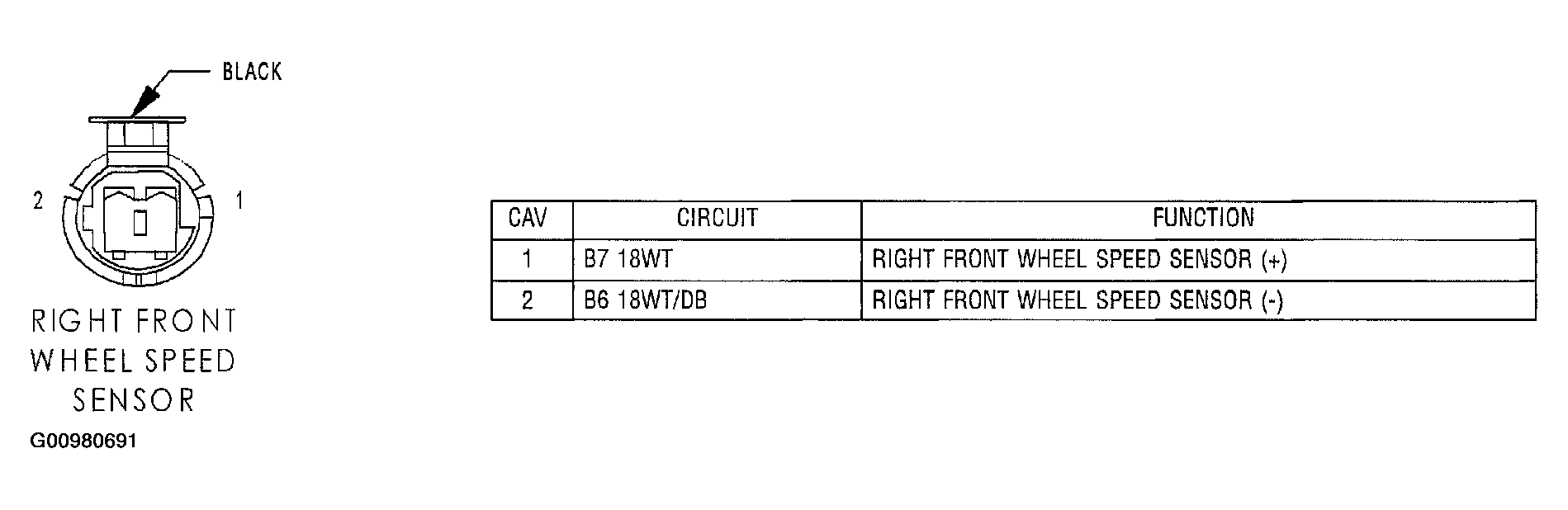

Fig 1: Right Front Wheel Speed Sensor
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
