Piston Rings: Removal

Remove piston and connecting rod. (Refer to PISTON & CONNECTING ROD )

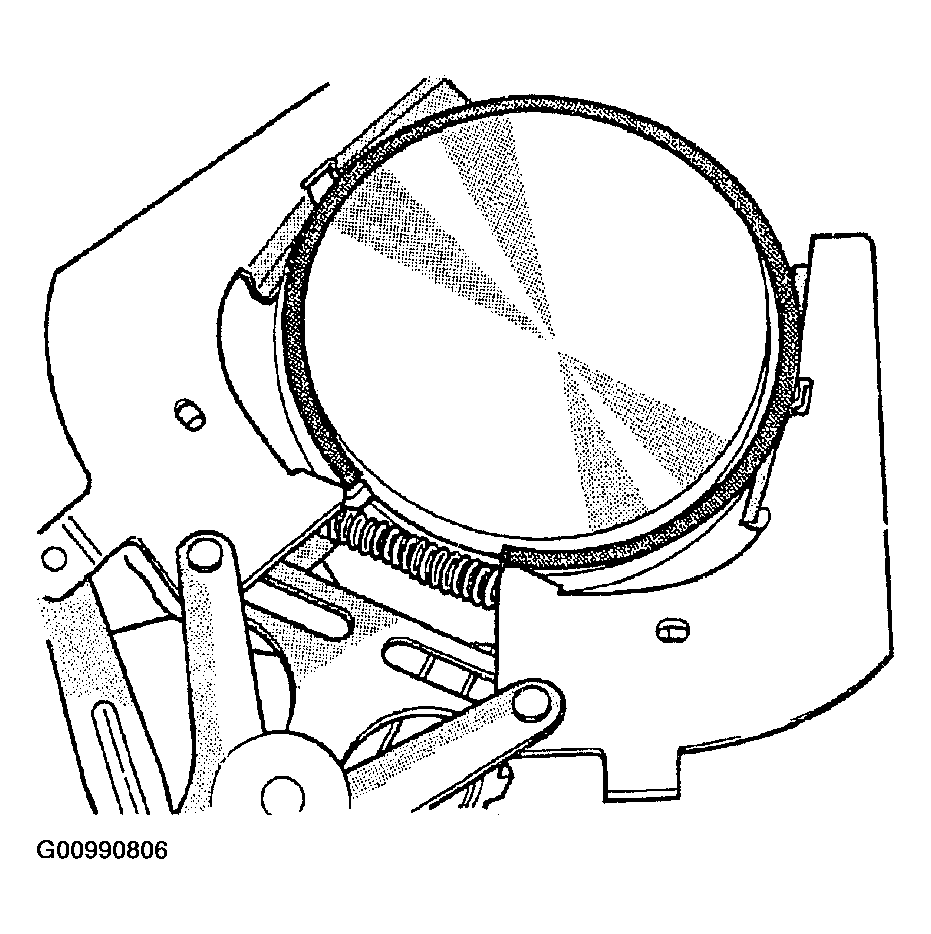

Remove No. 1 and No.2 piston rings (Fig 1) from piston using a ring expander tool (Figure).

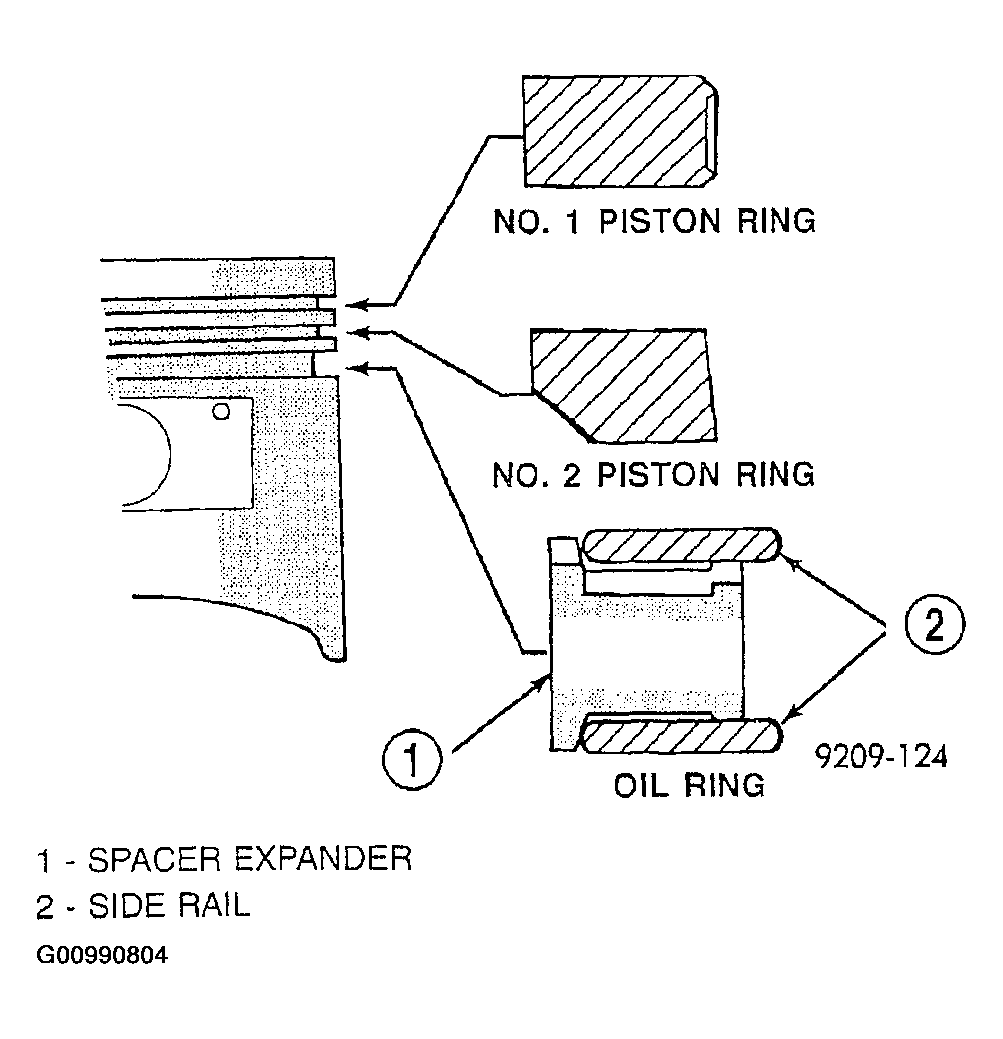

Fig 1: Removing & Installing Piston Ring
Courtesy of DAIMLERCHRYSLER CORP.
Remove upper oil ring side rail (Fig 1).
Remove lower oil ring side rail (Fig 1).
Remove oil ring expander (Fig 1).
