Valve Stem Seals: Removal

  1. Remove valve spring. (Refer to VALVE SPRINGS )
  2. Remove valve stem seal by using a valve seal tool (Fig 1).

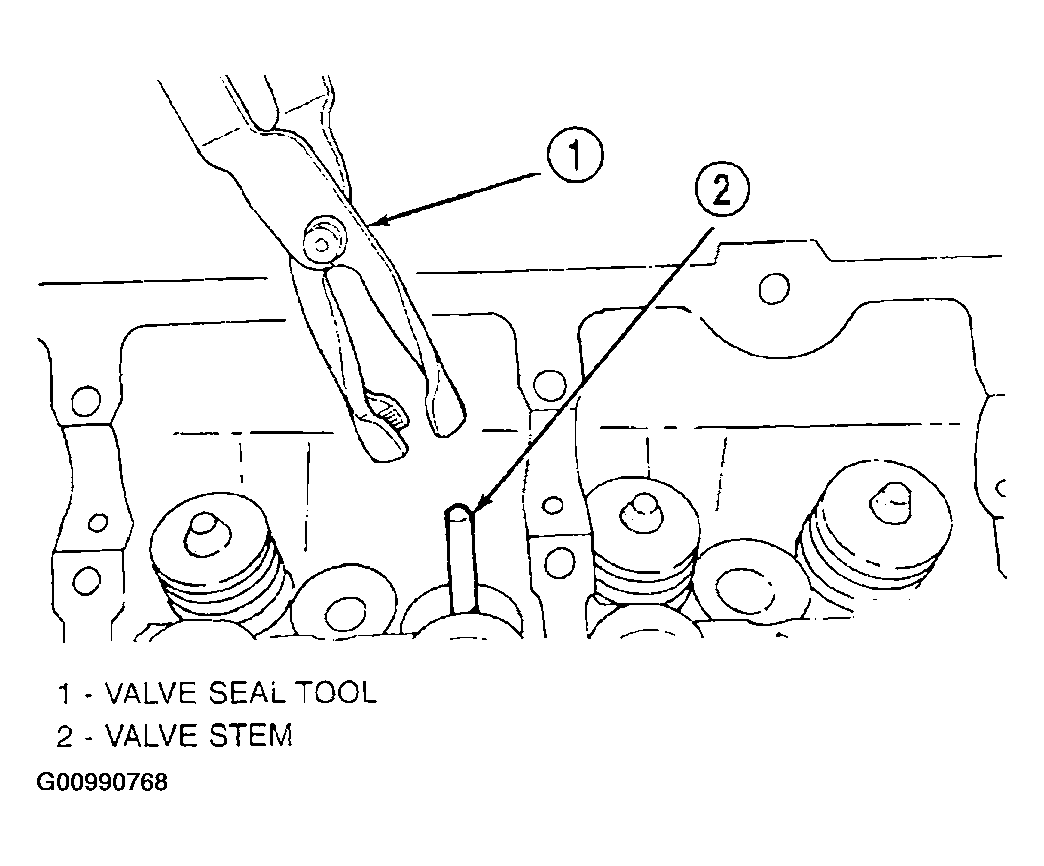

    Fig 1: Removing Valve Stem Seal
    G00990768Courtesy of DAIMLERCHRYSLER CORP.
