BRAKELIGHT Switch Harness Connector End View

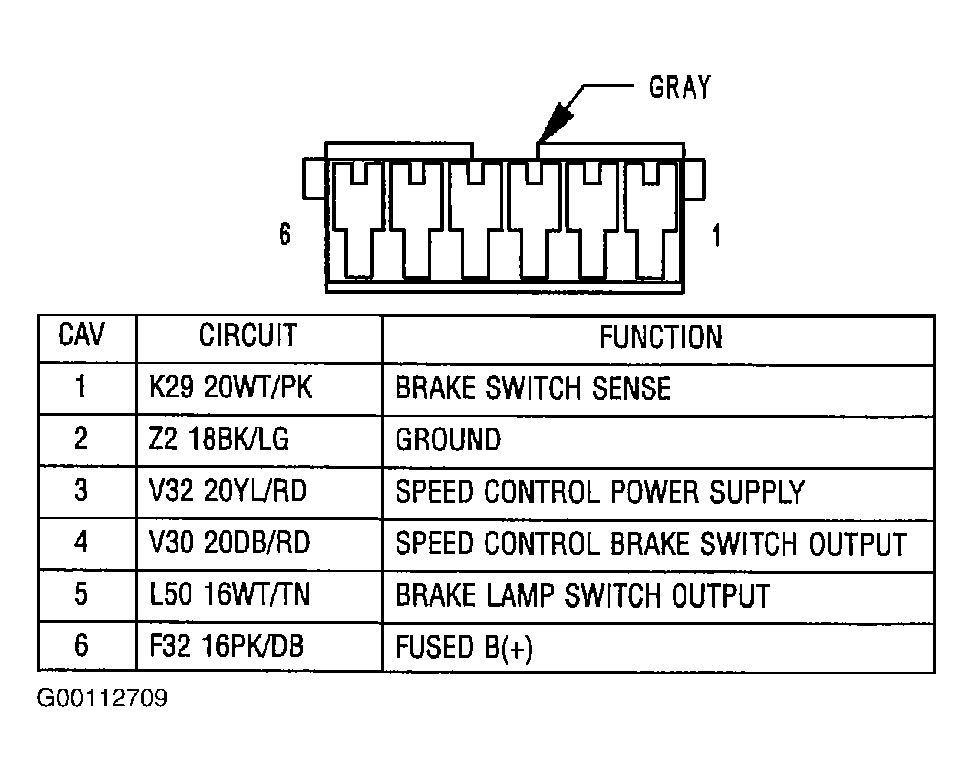

Fig 1: Identifying Brakelight Switch Harness Connector
G00112709Courtesy of DAIMLERCHRYSLER CORPORATION
