EGR Solenoid Harness Connector End View

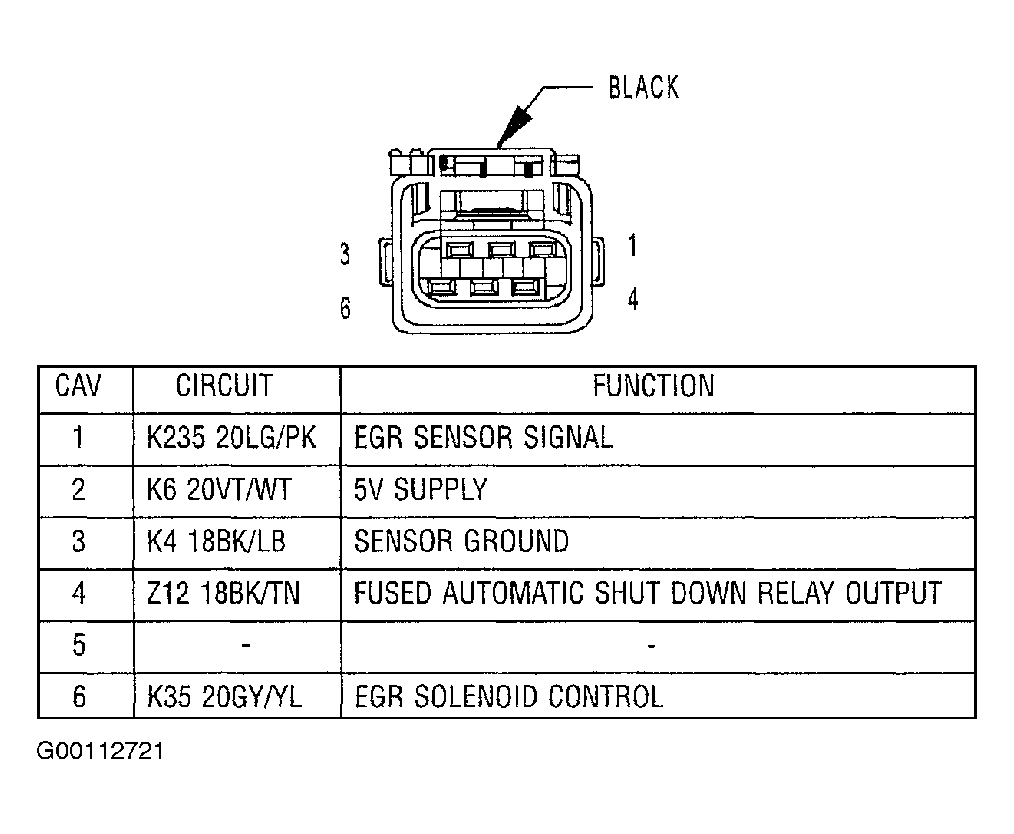

Fig 1: Identifying EGR Solenoid Harness Connector
G00112721Courtesy of DAIMLERCHRYSLER CORPORATION
