Leak Detection Pump Harness Connector End View
Leak Detection Pump Harness Connector End View

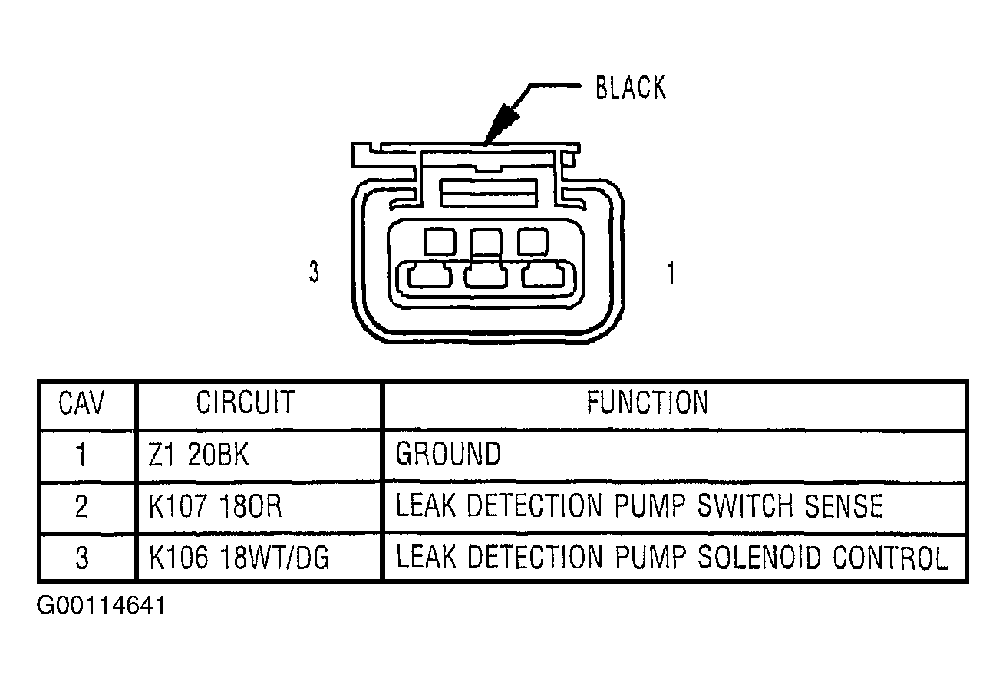

Fig 1: Identifying Leak Detection Pump Harness Connector
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
