Pcm Harness Connector End View

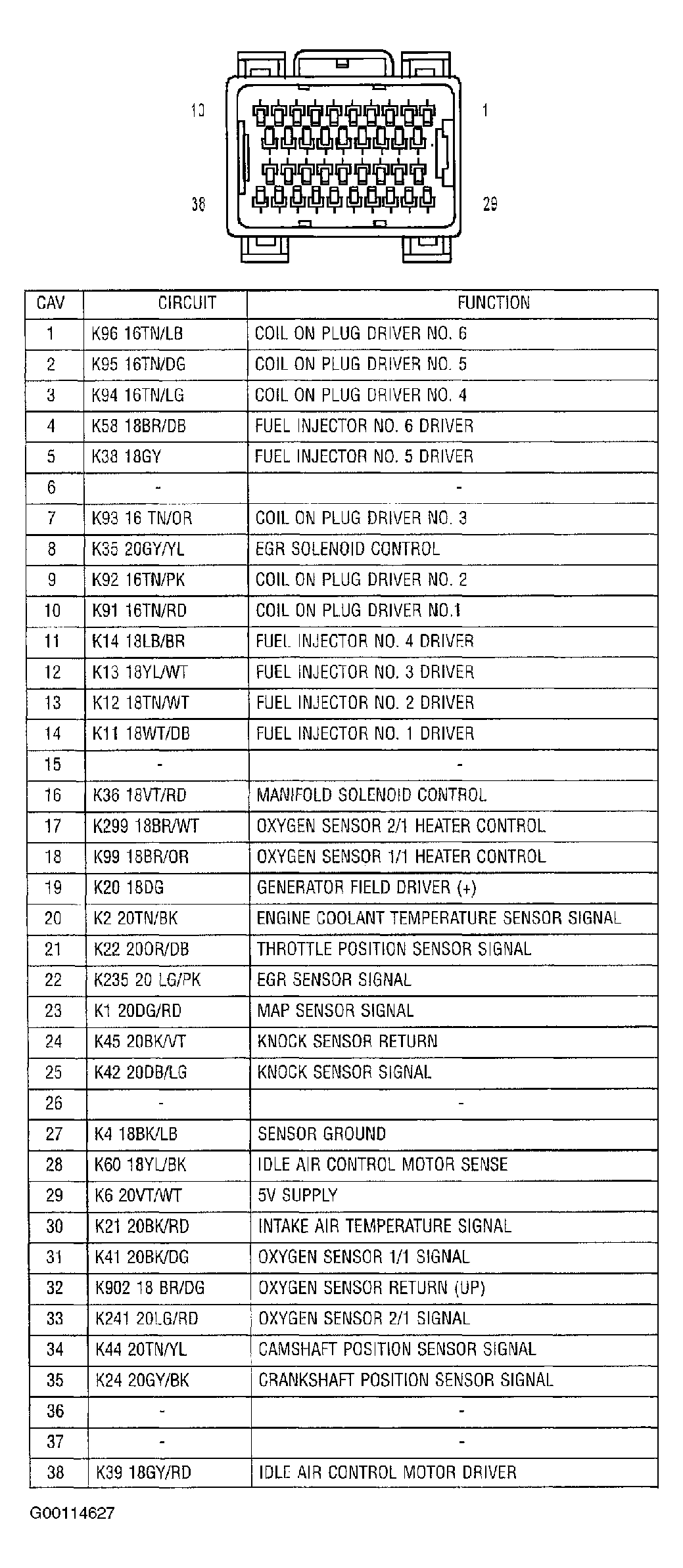

Fig 1: Identifying PCM C1 Black Harness Connector

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: Identifying PCM C2 Gray Harness Connector

Courtesy of DAIMLERCHRYSLER CORPORATION

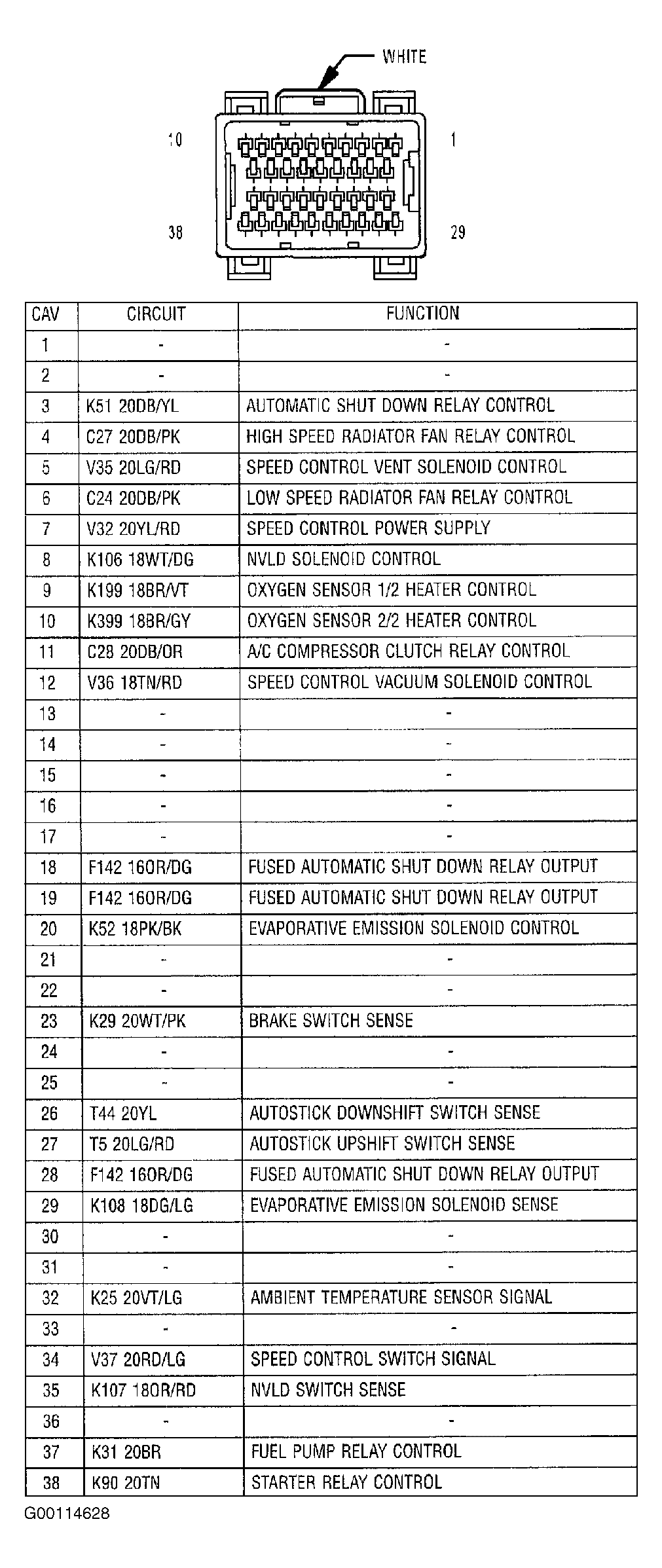

Fig 3: Identifying PCM C3 White Harness Connector

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: Identifying PCM C4 Green Harness Connector

Courtesy of DAIMLERCHRYSLER CORPORATION
