Connector Identification
›
Radiator Fan Harness Connector End View
Radiator Fan Harness Connector End View

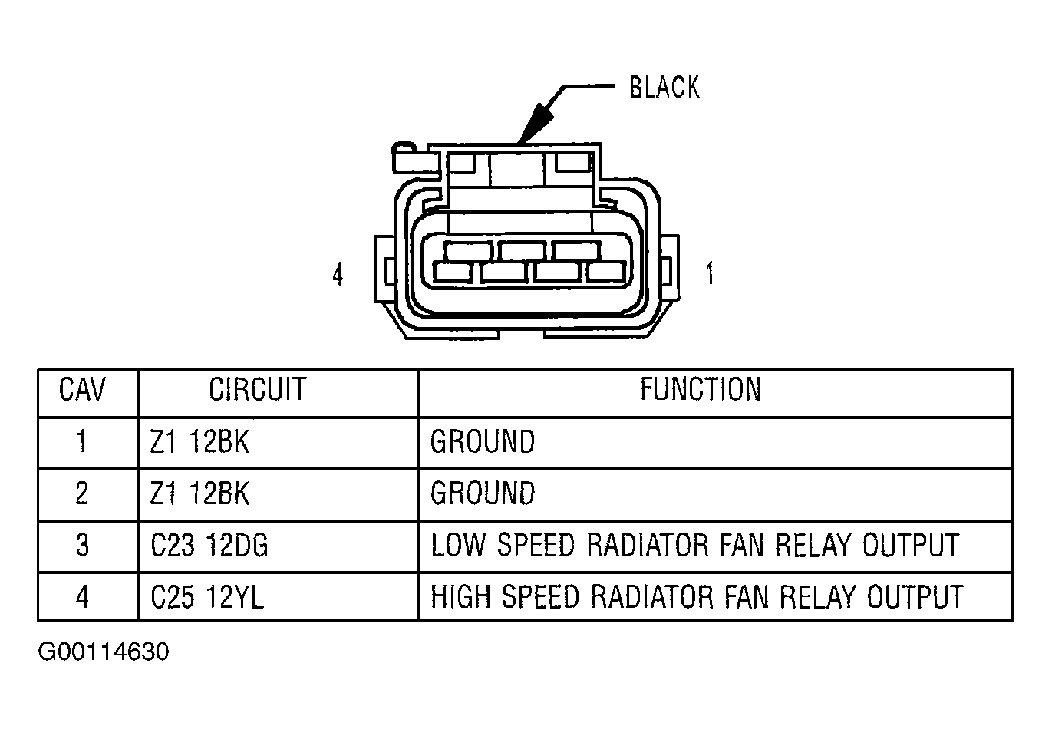

Fig 1: Identifying Radiator Fan Harness Connector
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
