Speed Control Servo Harness Connector End View

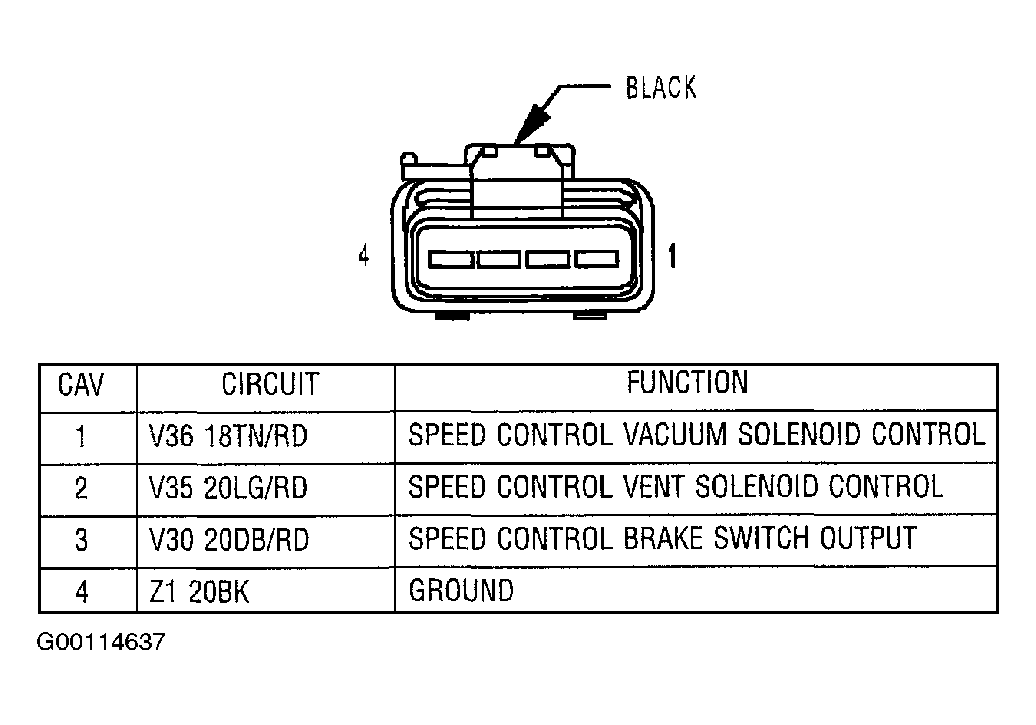

Fig 1: Identifying Speed Control Servo Harness Connector
G00114637Courtesy of DAIMLERCHRYSLER CORPORATION
