TP Sensor Harness Connector End View (3.5L)
TP Sensor Harness Connector End View (3.5L)

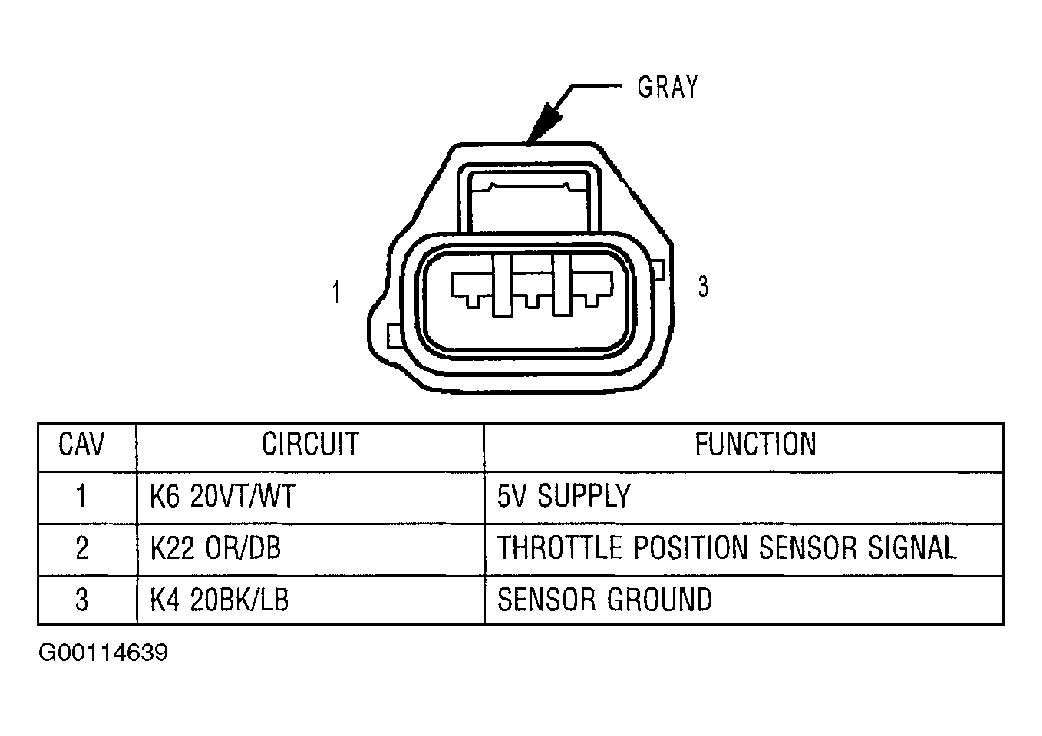

Fig 1: Identifying TP Sensor Harness Connector (3.5L)
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
