Oil Pressure Relief Valve: Installation
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, and 2003 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.

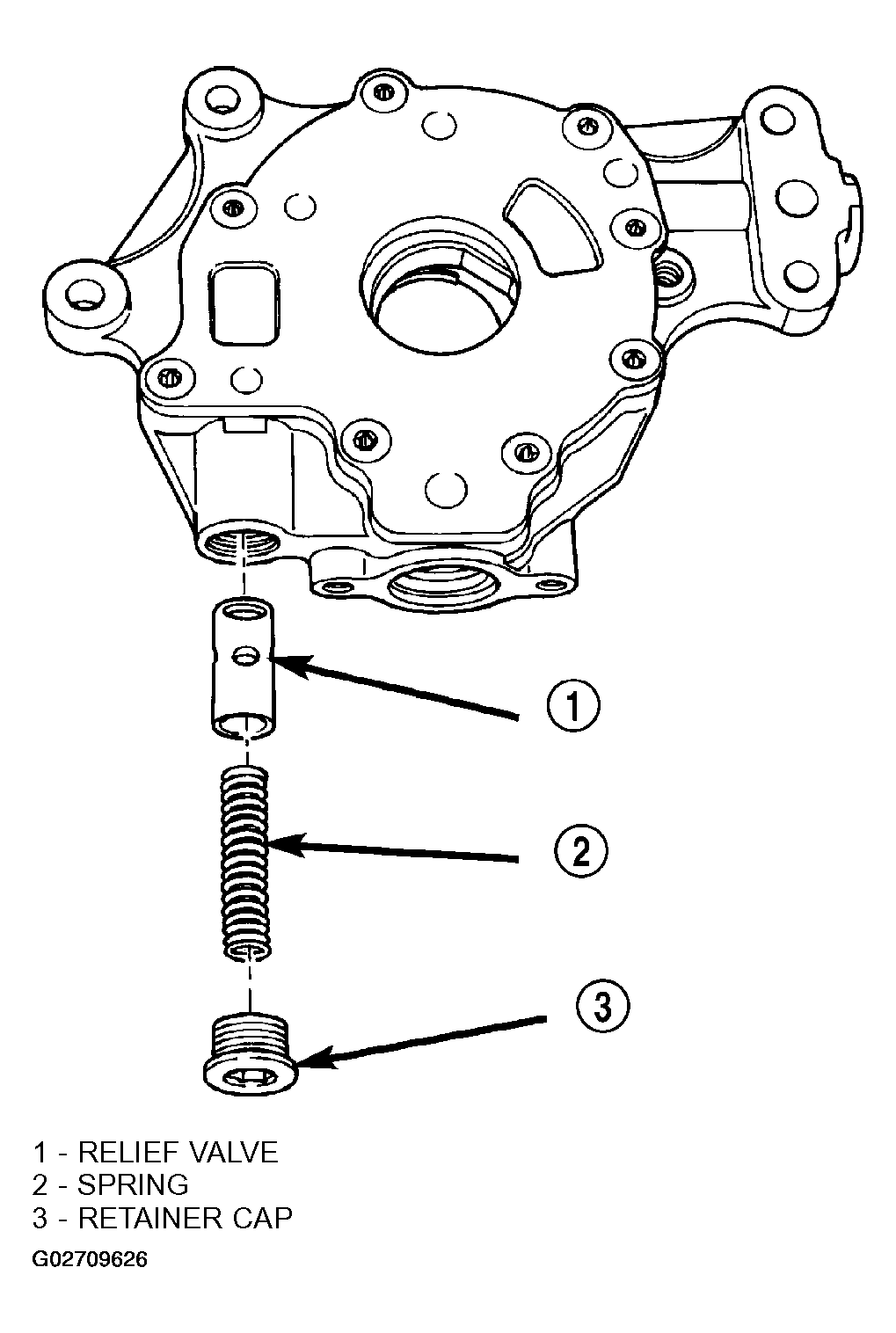

- Lubricate relief valve with oil.CAUTION: The pressure relief valve must be installed as shown in (Figure), or engine damage may occur.
- Install relief valve, spring and retainer cap (Figure). Tighten cap to 12 N.m (105 in. lbs.).
- Install the oil pan. (Refer to INSTALLATION ).
