Blend Door Actuator: Installation

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the wire harness connector to the blend door actuator.
  2. Install the blend door actuator on the HVAC housing, making sure its keyed shaft is positioned properly.
  3. Install the three fastener screws and tighten to 2.2 N.m (20 in.lbs.).
  4. Install the left and right underpanel silencer/ ducts.

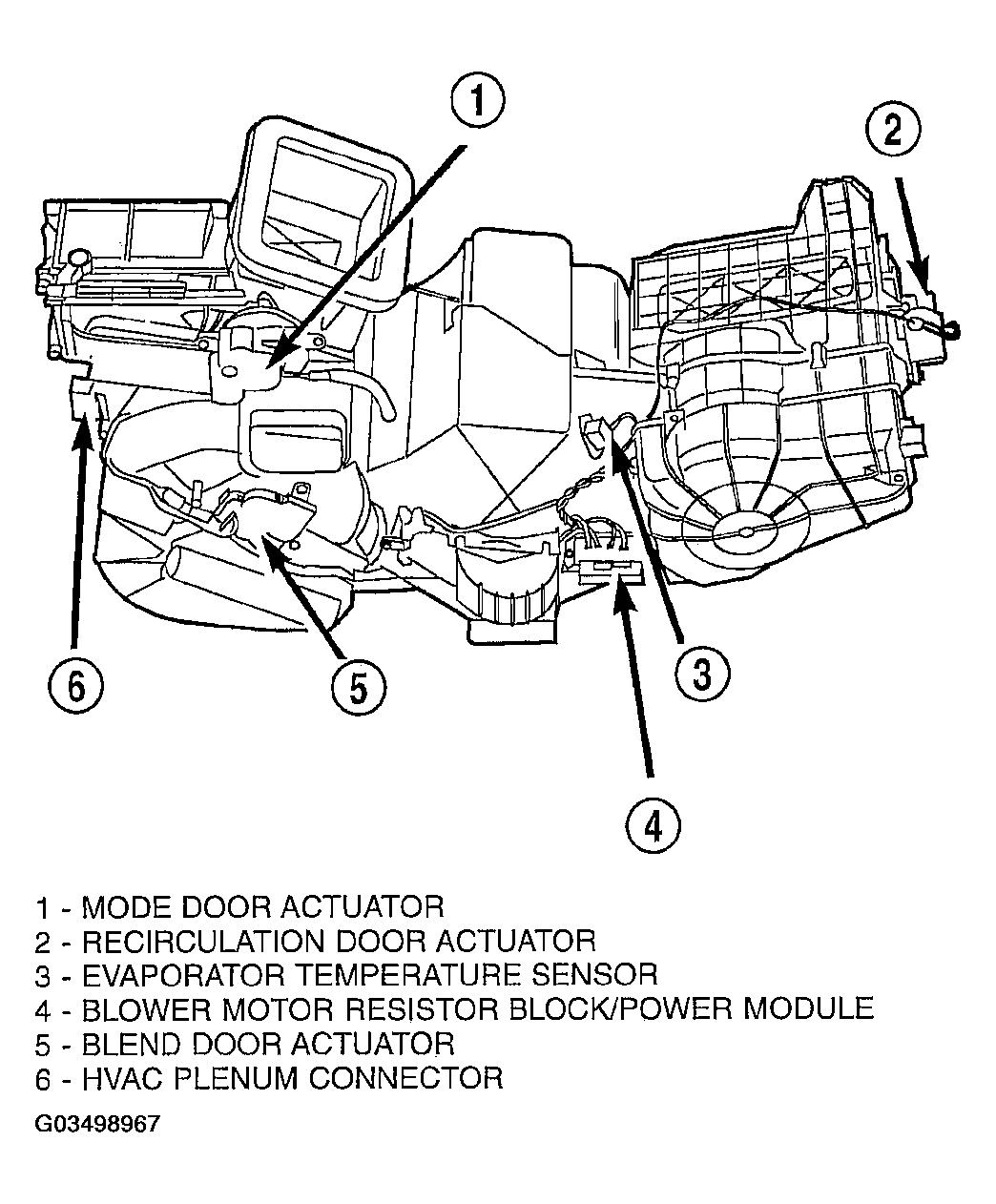

    Fig 1: Blend Door Actuator Location
    G03498967Courtesy of DAIMLERCHRYSLER CORP.
  5. Connect the negative battery cable remote terminal to the remote battery post (Refer to INSTALLATION ).
