Junction Block C11 Connector End View
Junction Block C11 Connector End View

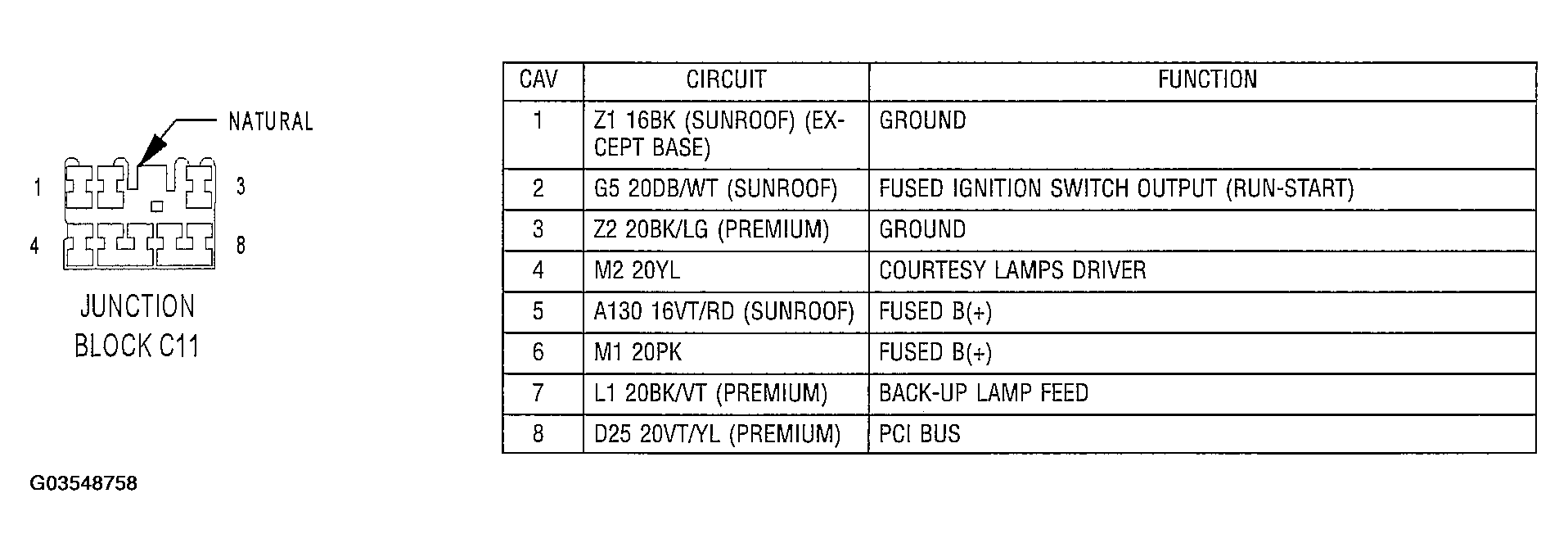

Fig 1: Junction Block C11
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
