Left Rear Wheel Speed Sensor Connector End View

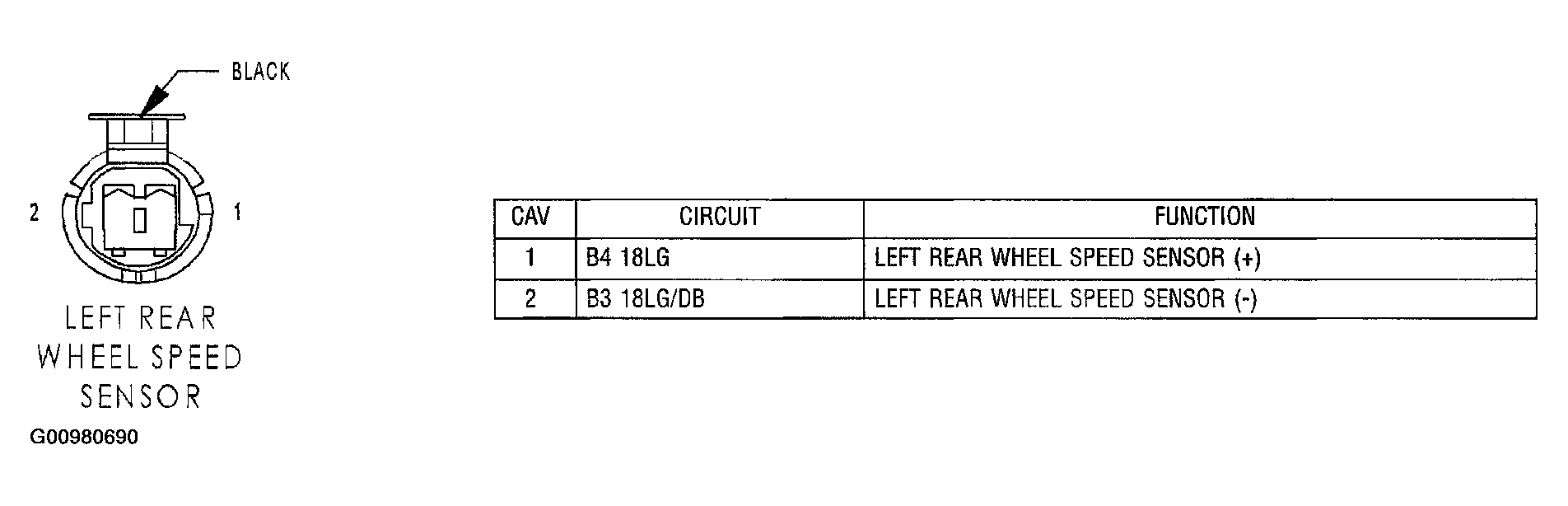

Fig 1: Left Rear Wheel Speed Sensor
G00980690Courtesy of CHRYSLER GROUP, LLC
