Overhead Map/Courtesy Lamp Connector End View

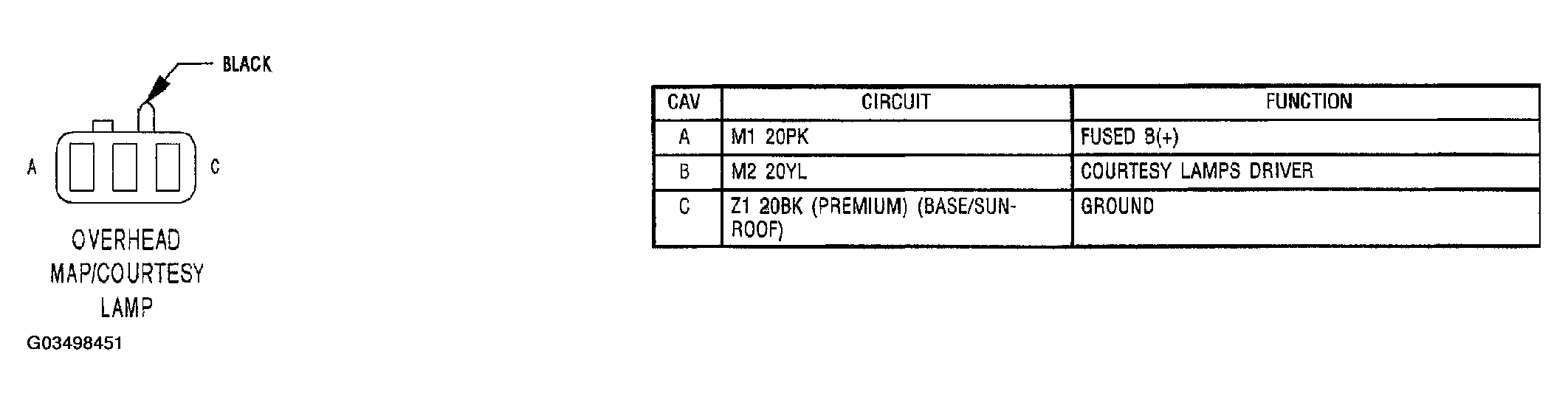

Fig 1: Overhead Map/Courtesy Lamp Connector End View
G03498451Courtesy of CHRYSLER GROUP, LLC
