Radio Connector End View (C1) Connector End View
Radio Connector End View (C1) Connector End View

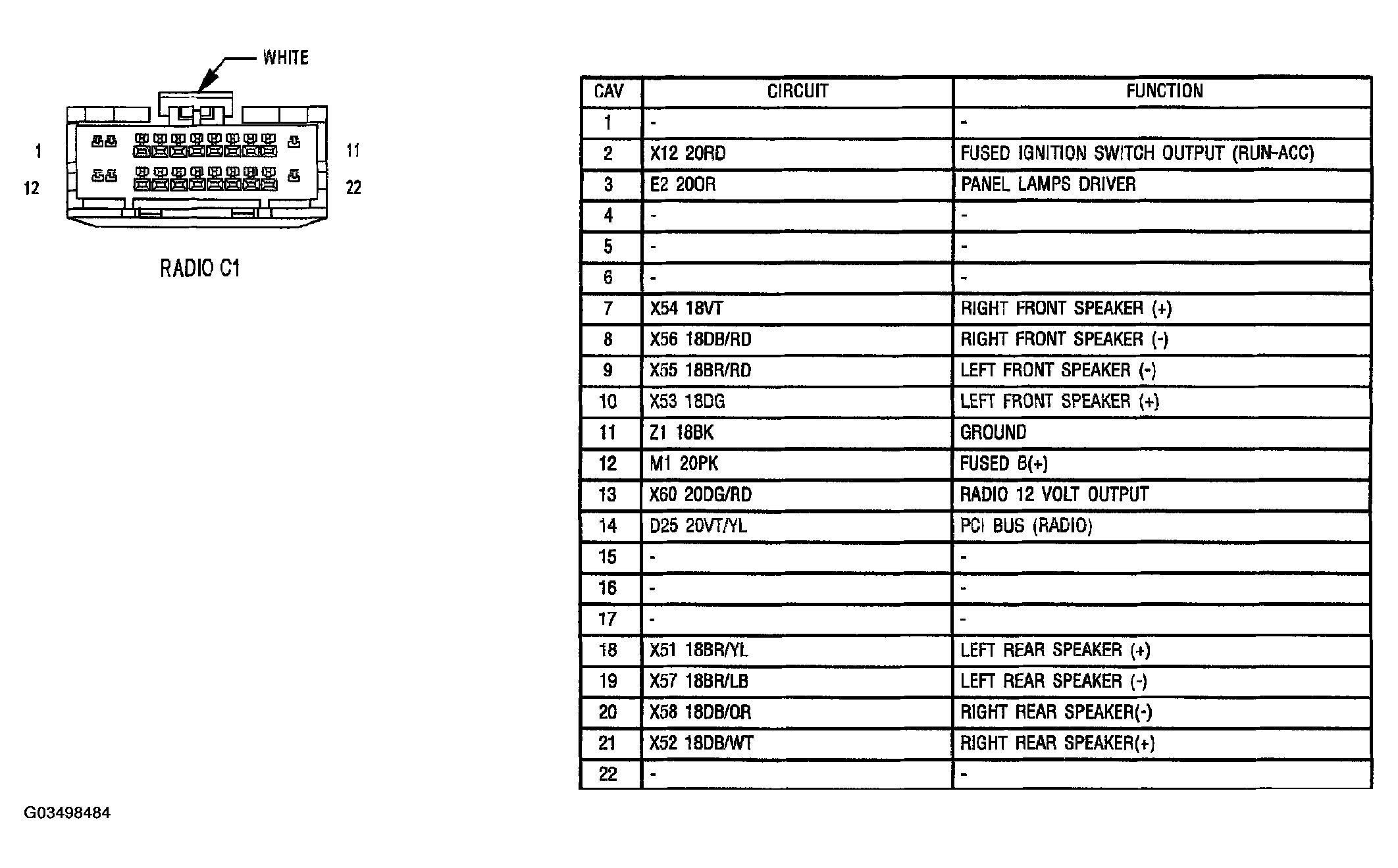

Fig 1: Radio Connector End View (C1)
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
