Satellite Receiver Module C1 (Premium) Connector End View
Satellite Receiver Module C1 (Premium) Connector End View

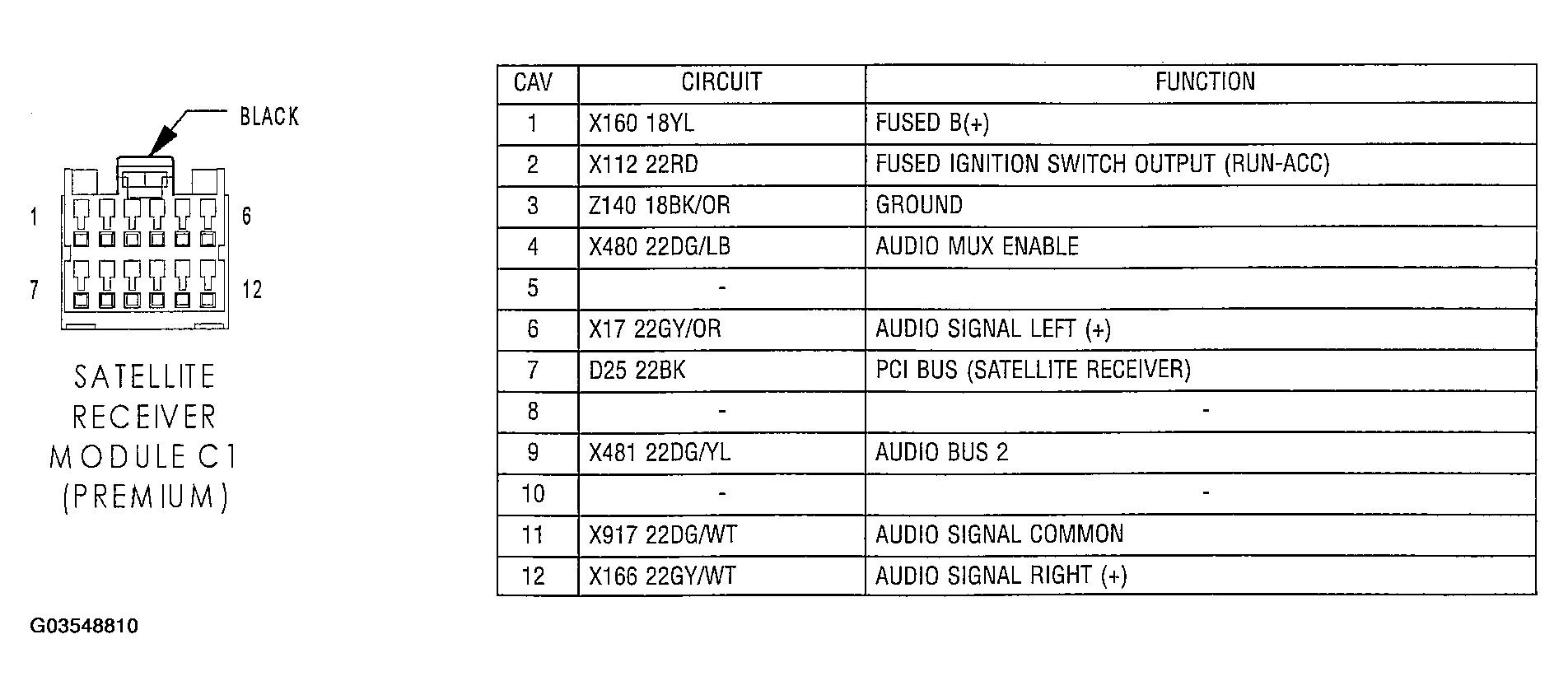

Fig 1: Satellite Receiver Module C1 (Premium)
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
