Speed Proportional Steering Solenoid Connector End View
Speed Proportional Steering Solenoid Connector End View

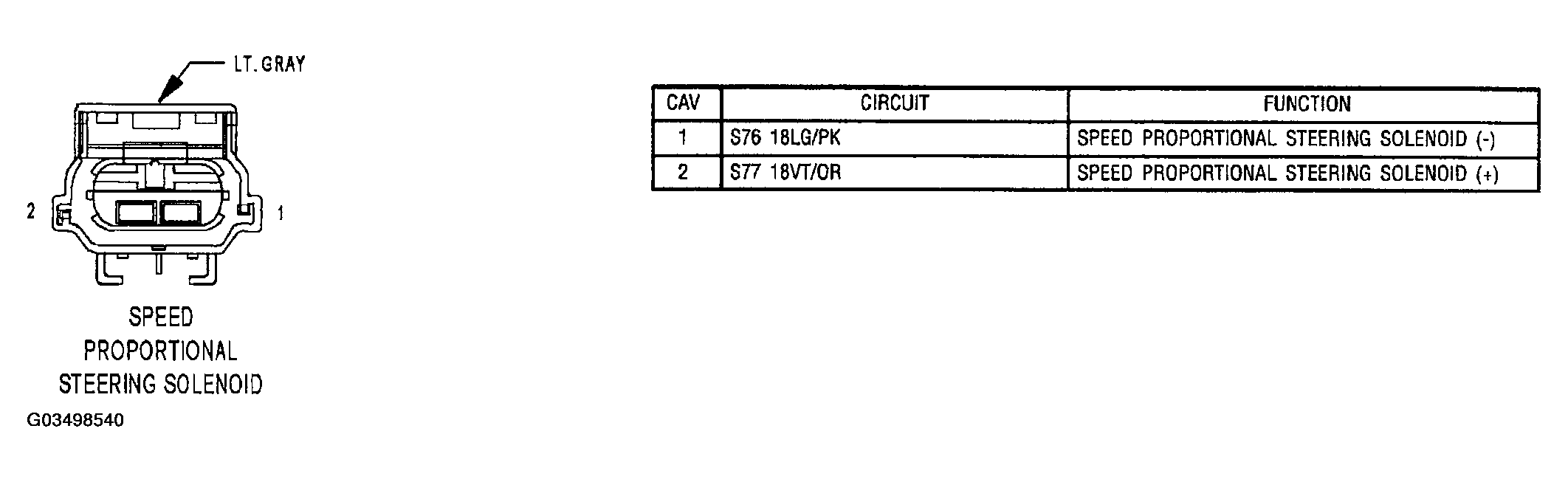

Fig 1: Speed Proportional Steering Solenoid Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
