Speed Sensor - Output: Installation

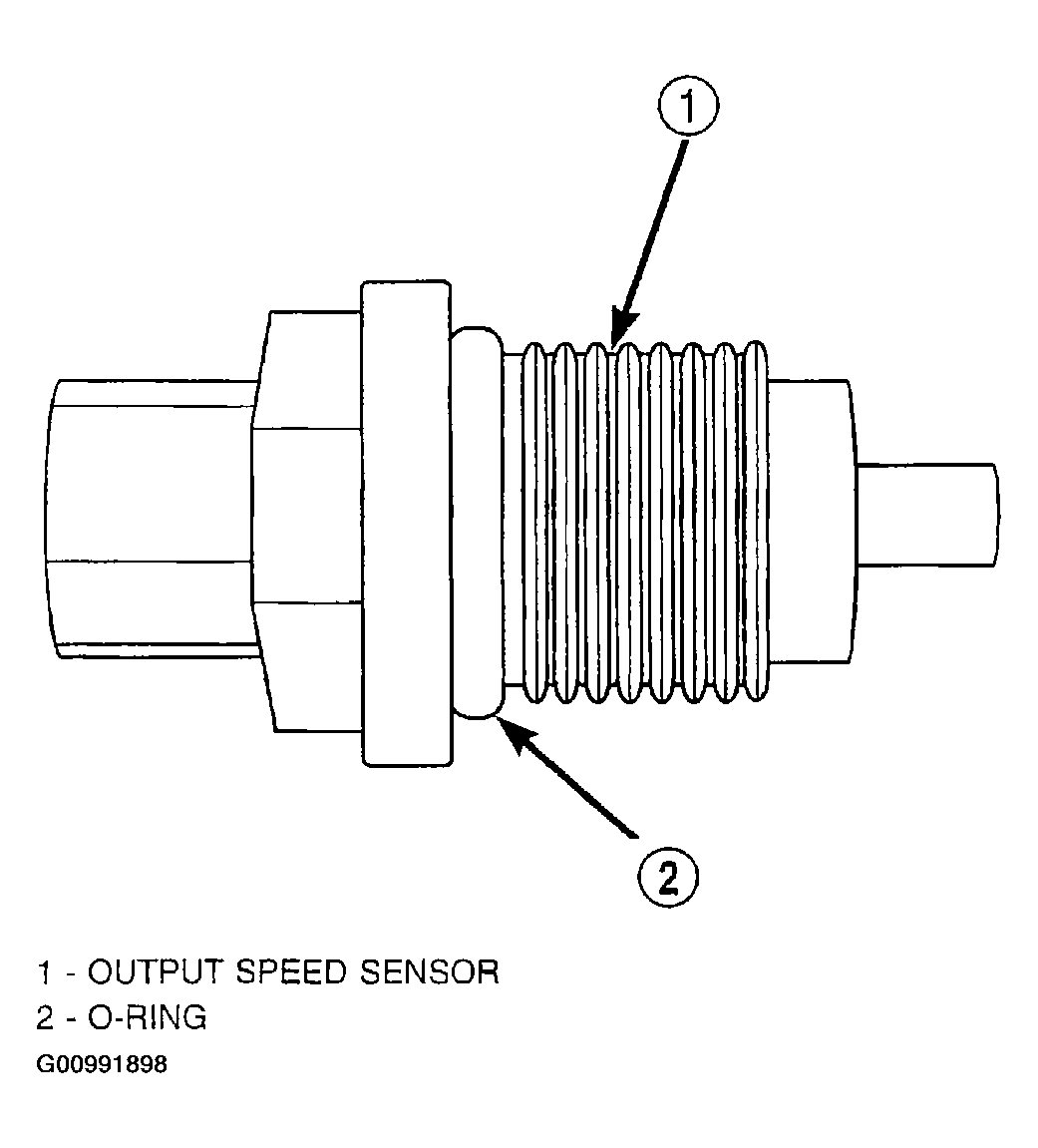

  1. Verify o-ring is installed into position. See Figure.
  2. Install and tighten output speed sensor to 27 N.m (20 ft. lbs.) torque.

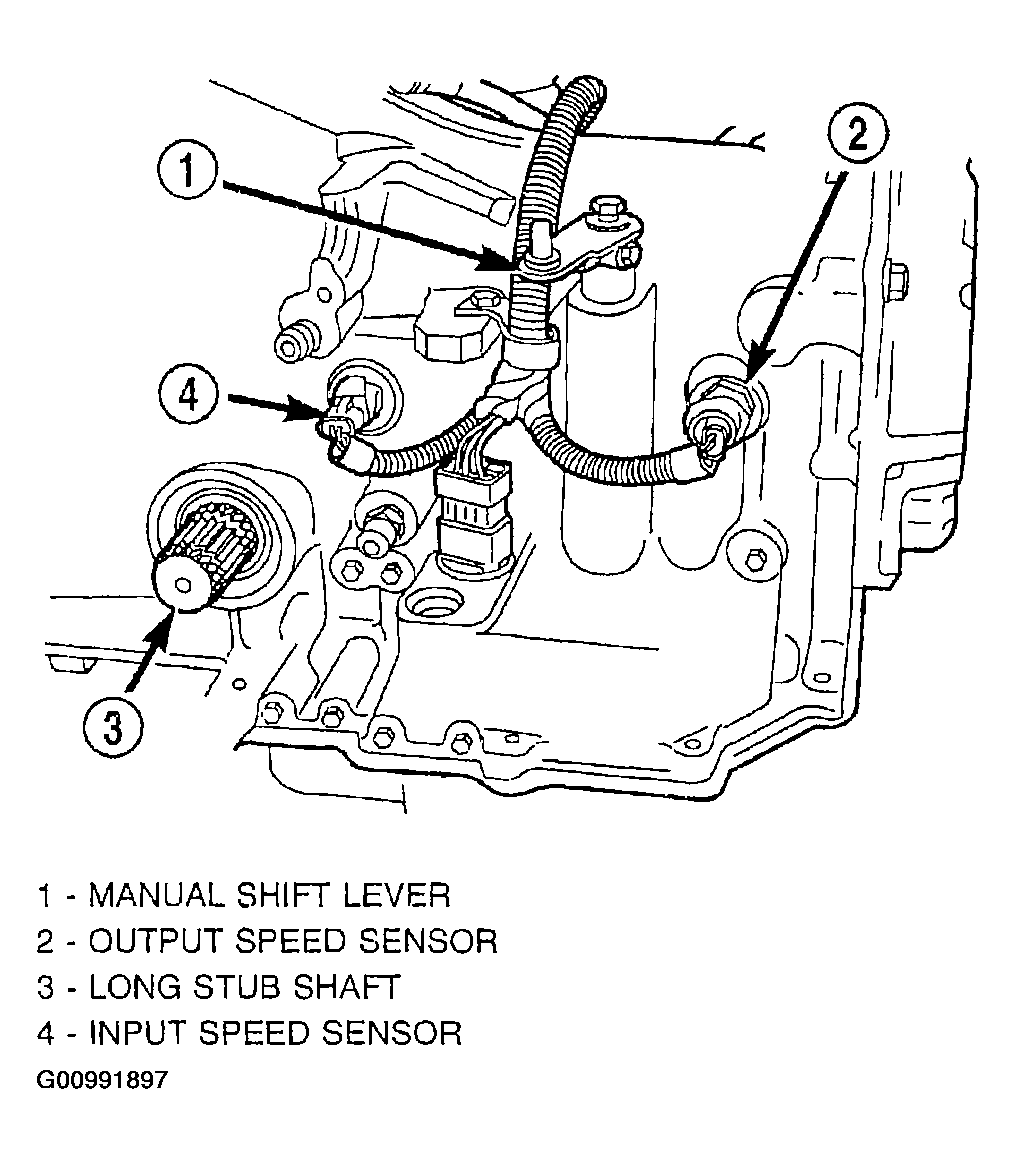

  3. Connect speed sensor connector. See Figure.
  4. Connect battery negative cable.
