Removal & Installation

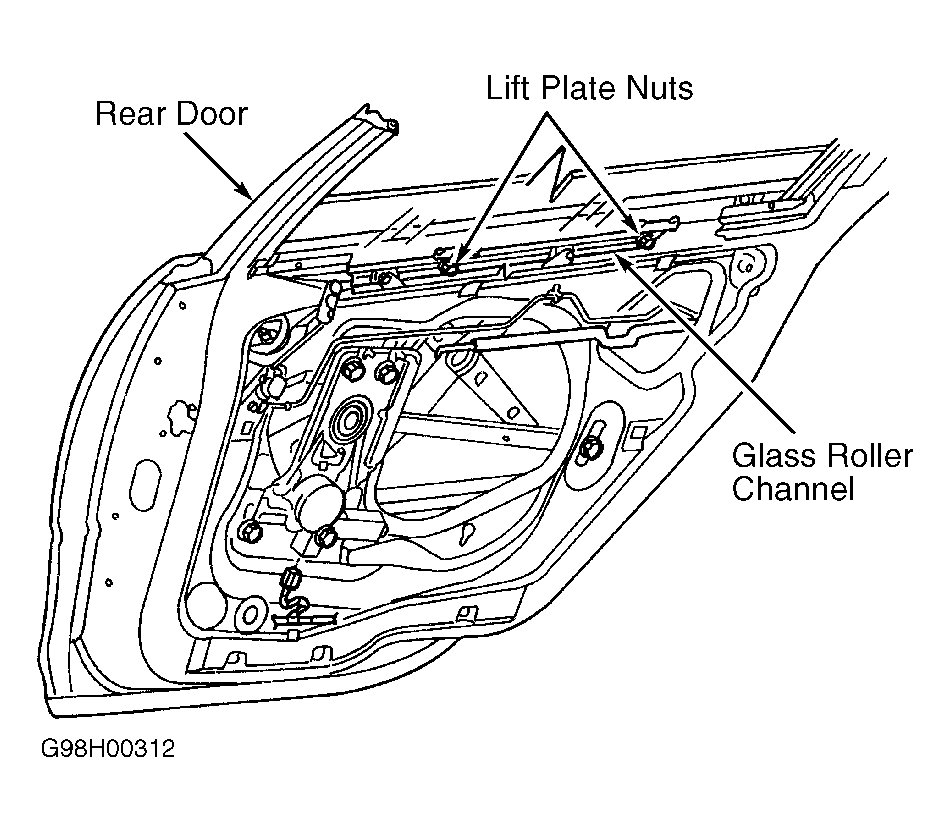

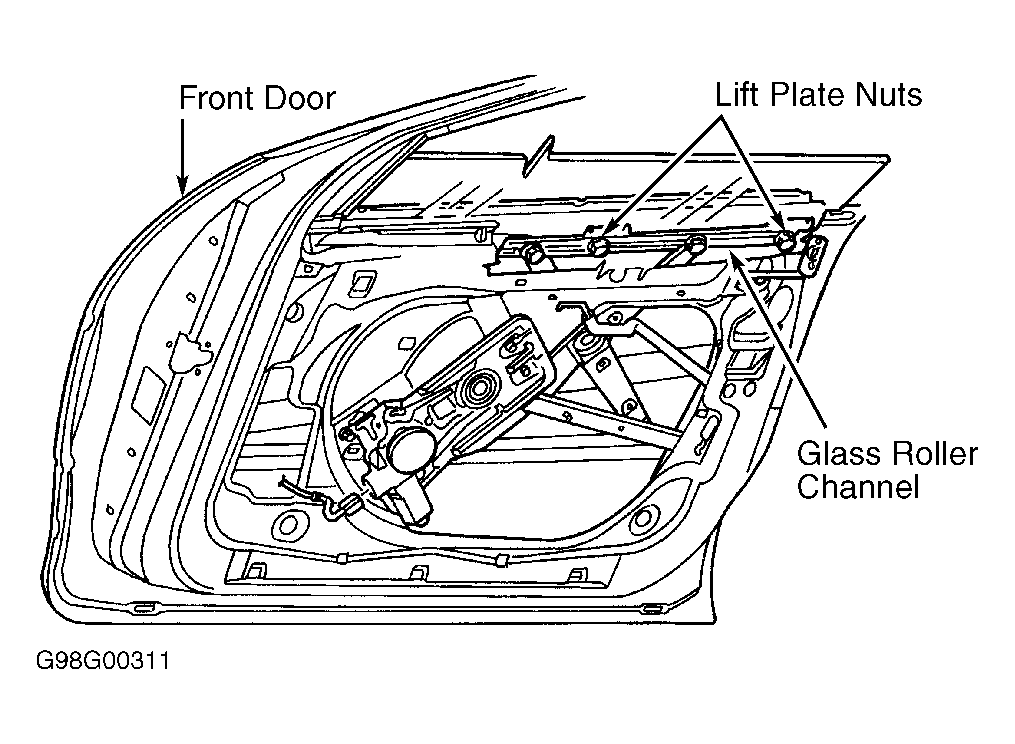

- Remove door trim panel. See DOOR TRIM PANEL . Remove door cup support bracket. Disconnect window from regulator. See Fig 1 or Fig 2 . Disconnect window motor harness connector. Loosen all bolts connecting regulator to door. Slide regulator free from door and rotate regulator out of access hole in door.
- To install regulator, reverse removal procedure. Align window. See ADJUSTMENTS .
