Verification Test
›
Verification Test VER-3
Verification Test VER-3

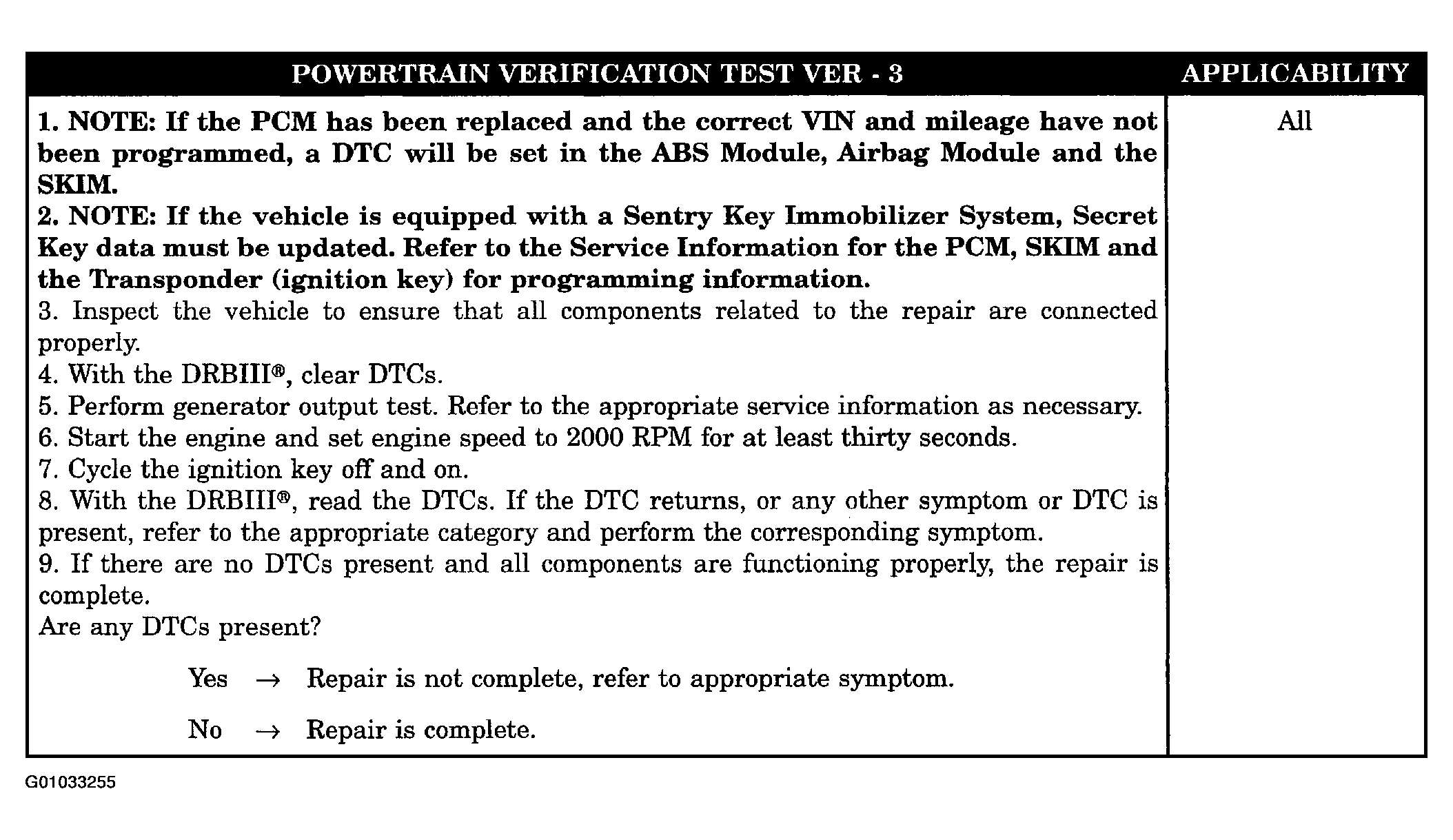

Fig 1: Verification Test VER-3
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
