Fuse Block

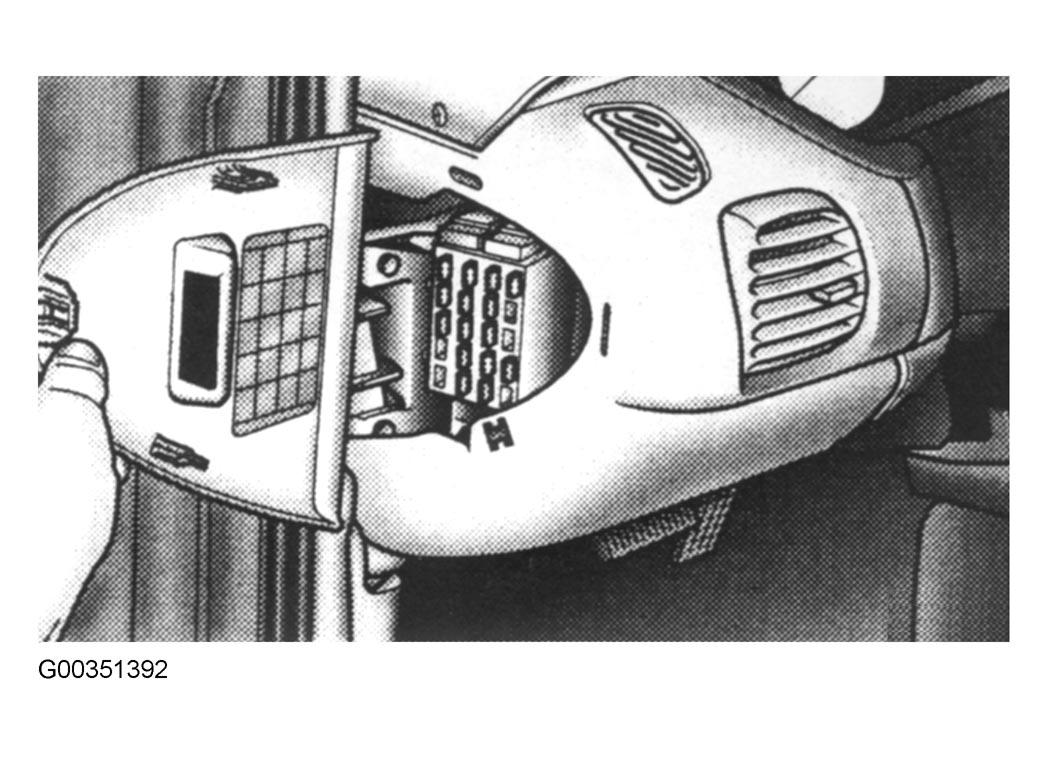

For fuse block location, see Fig 1 .

Fig 1: Locating Fuse Block

Courtesy of CHRYSLER CORP.

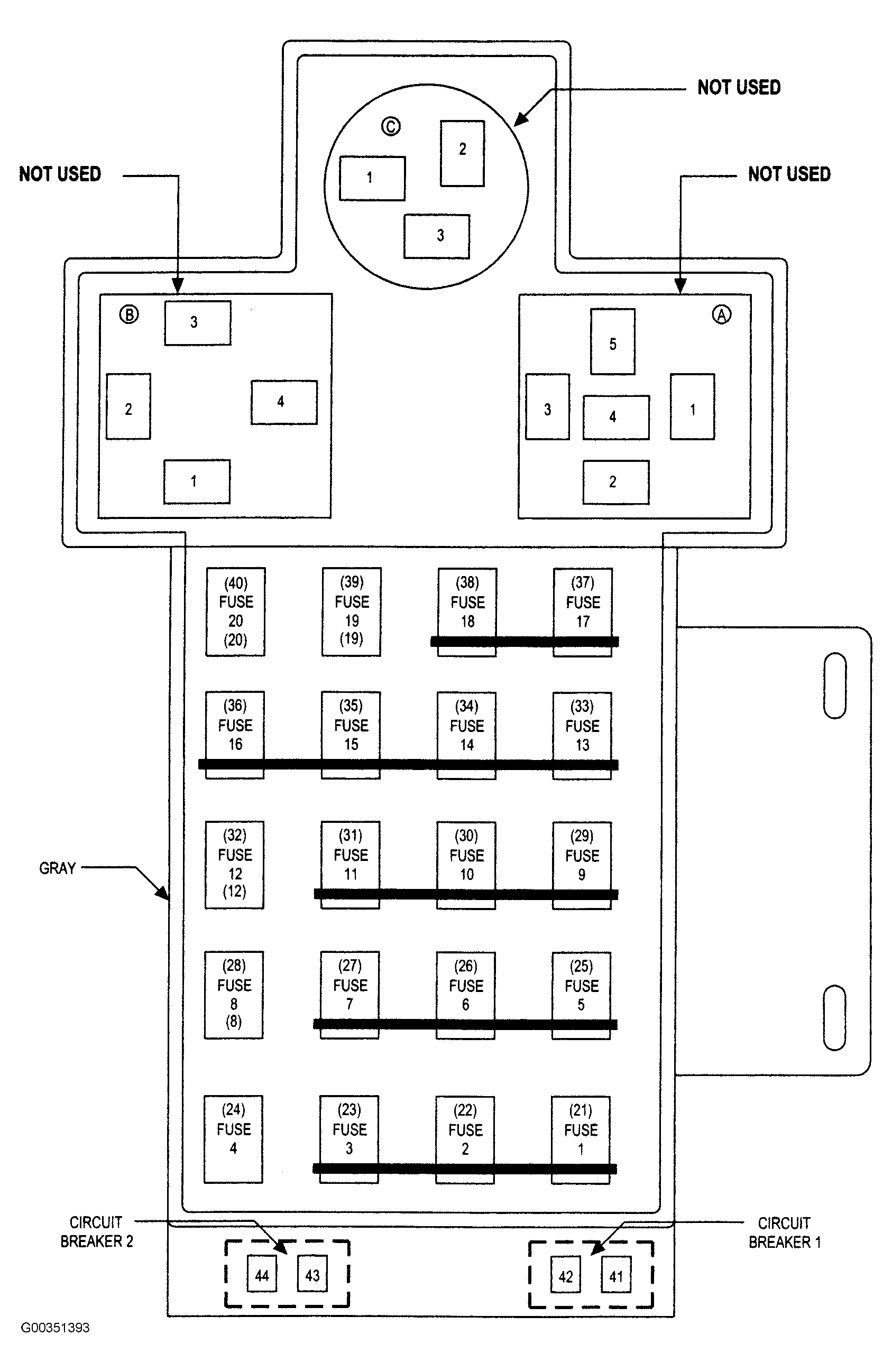

Fig 2: Identifying Fuse Block Components

Courtesy of CHRYSLER CORP.

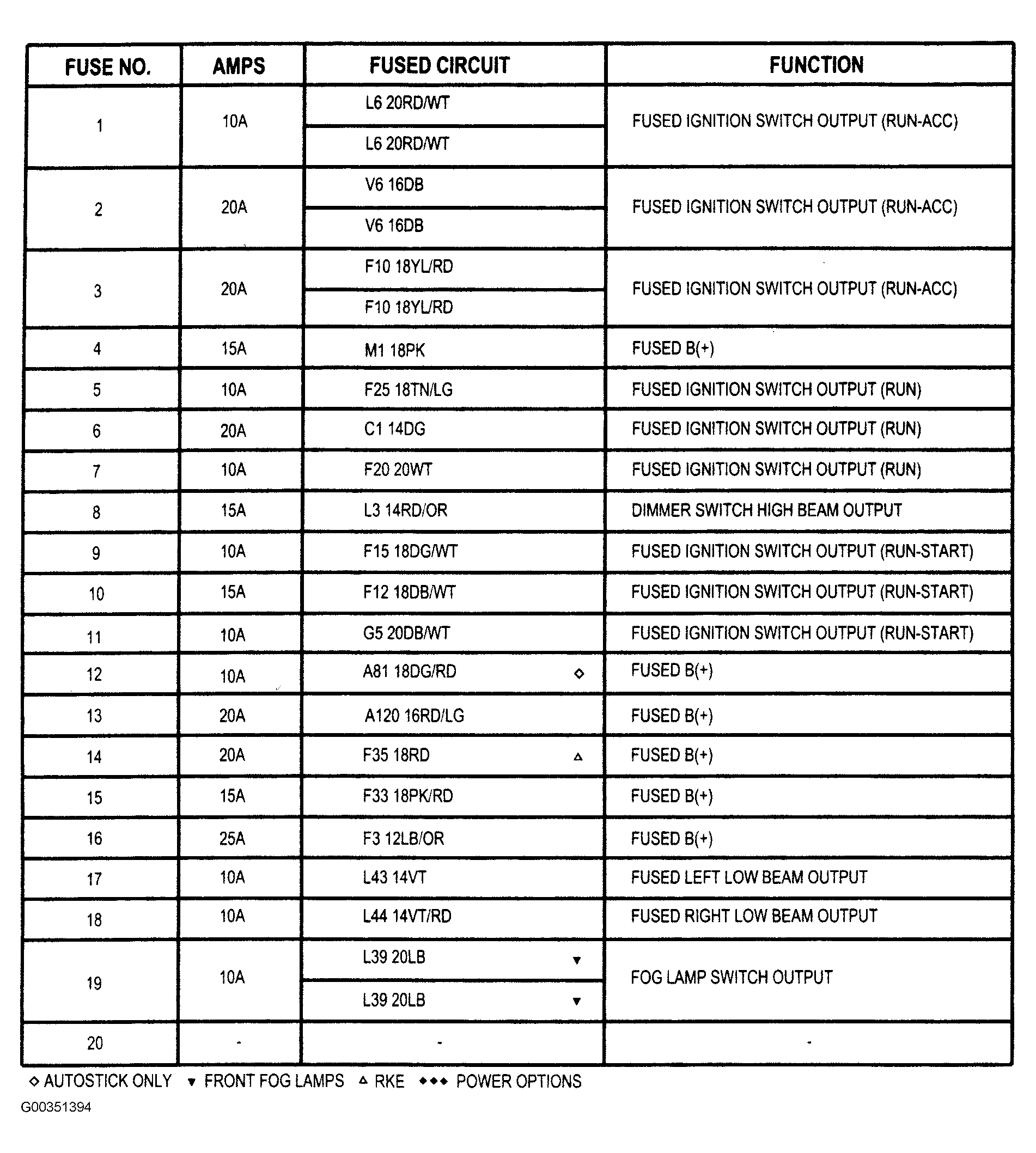

Fig 3: Fuse Block Legend

Courtesy of CHRYSLER CORP.
