Right Door Lock Switch Connector End View
Right Door Lock Switch Connector End View

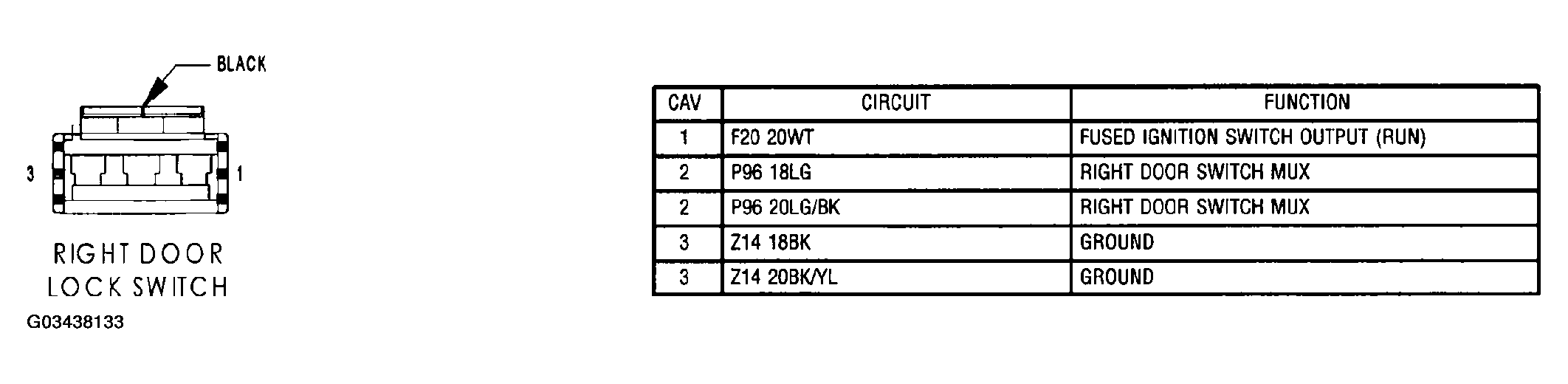

Fig 1: Right Door Lock Switch Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
