C202 Inline Connector End View
C202 Inline Connector End View

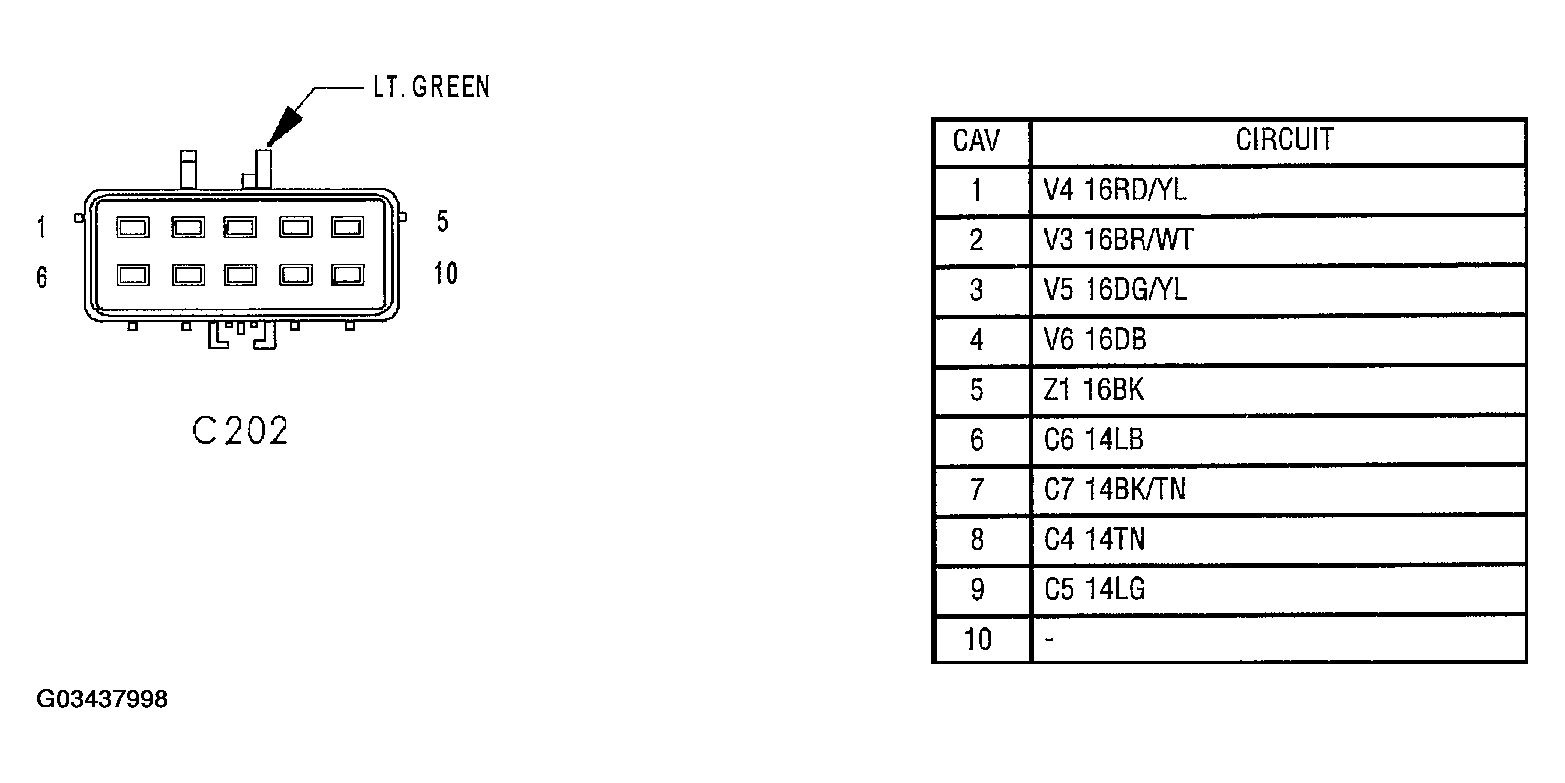

Fig 1: C202 Inline Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
