C204 Inline Connector End View

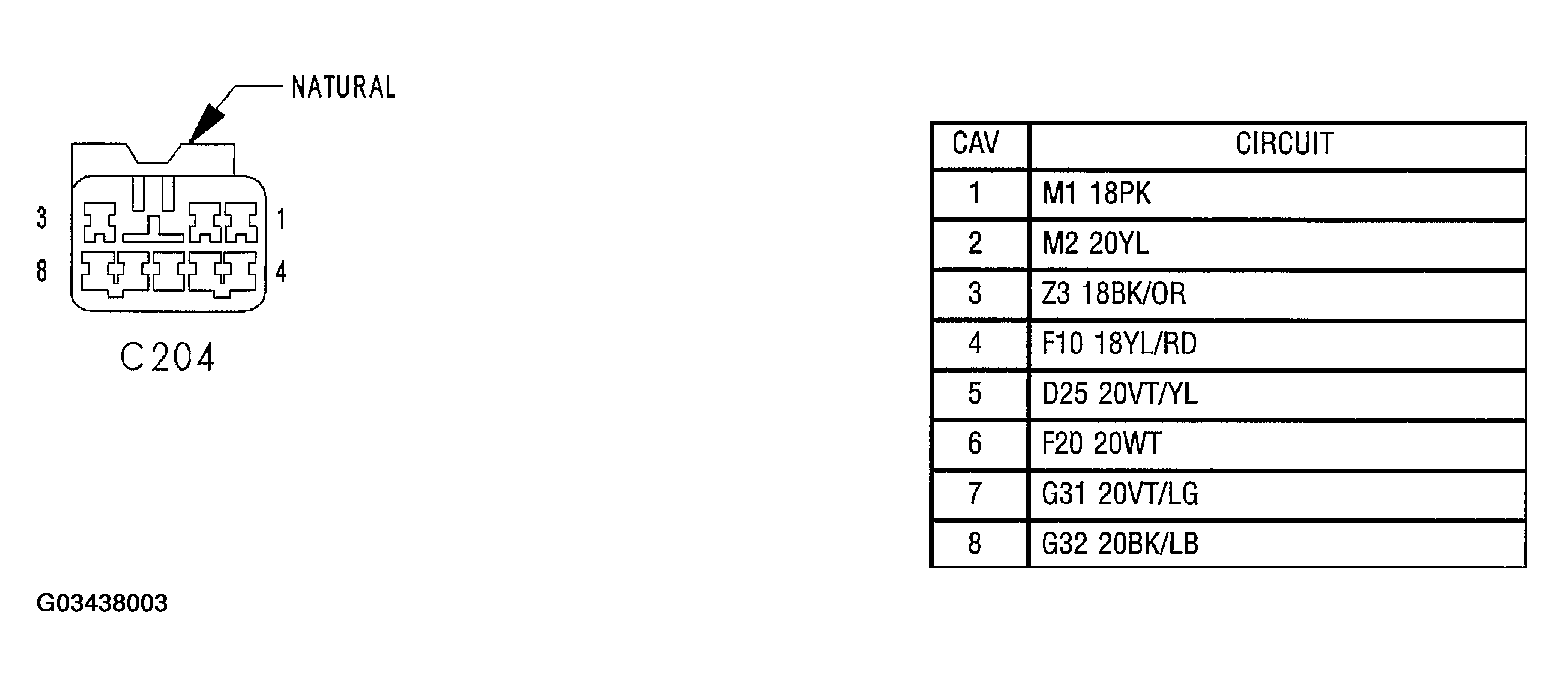

Fig 1: C204 Inline Connector End View
G03438003Courtesy of CHRYSLER GROUP, LLC

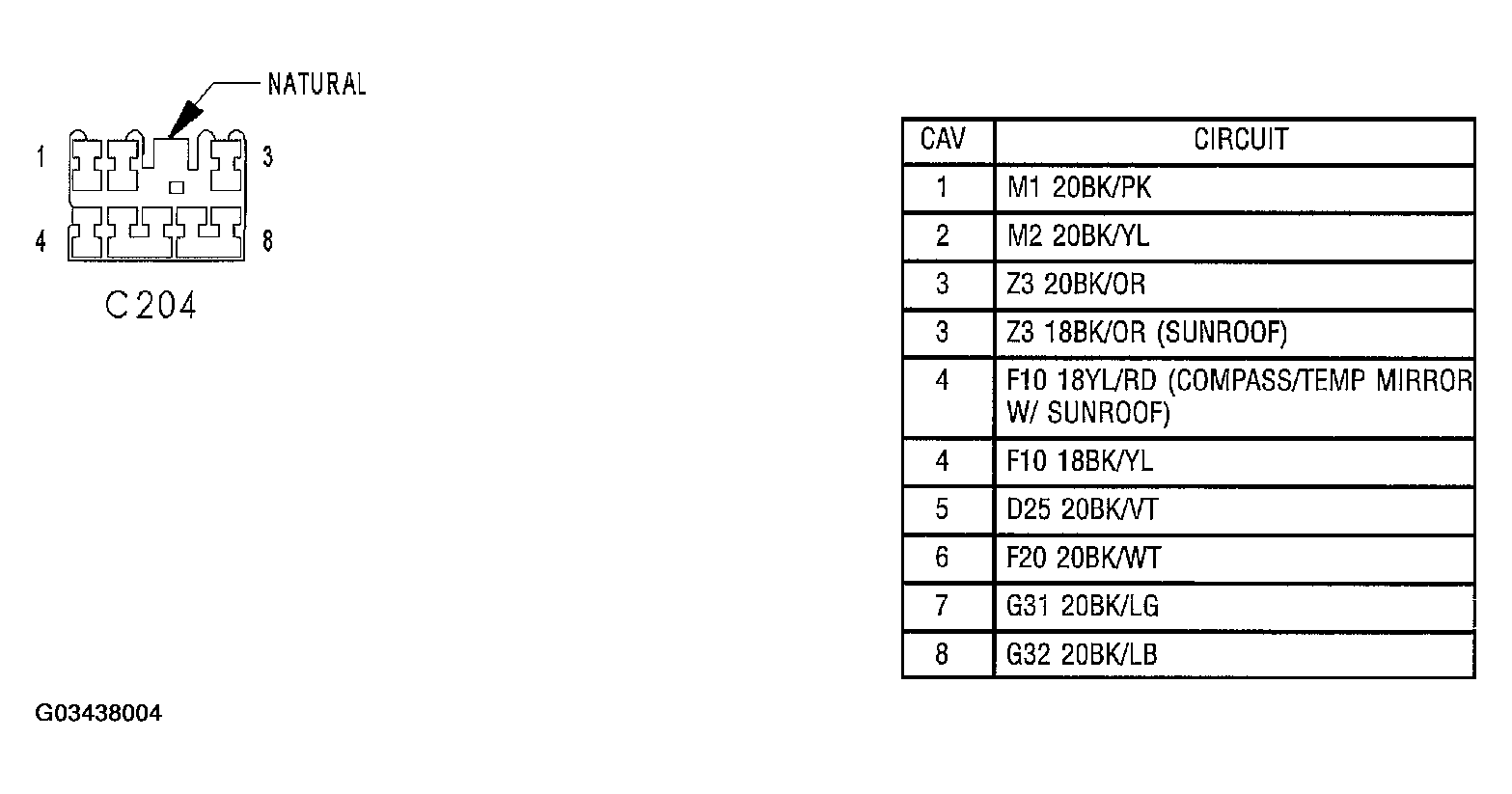

Fig 1: C204 Inline Connector End View
G03438004Courtesy of CHRYSLER GROUP, LLC
