C302 Inline Connector End View

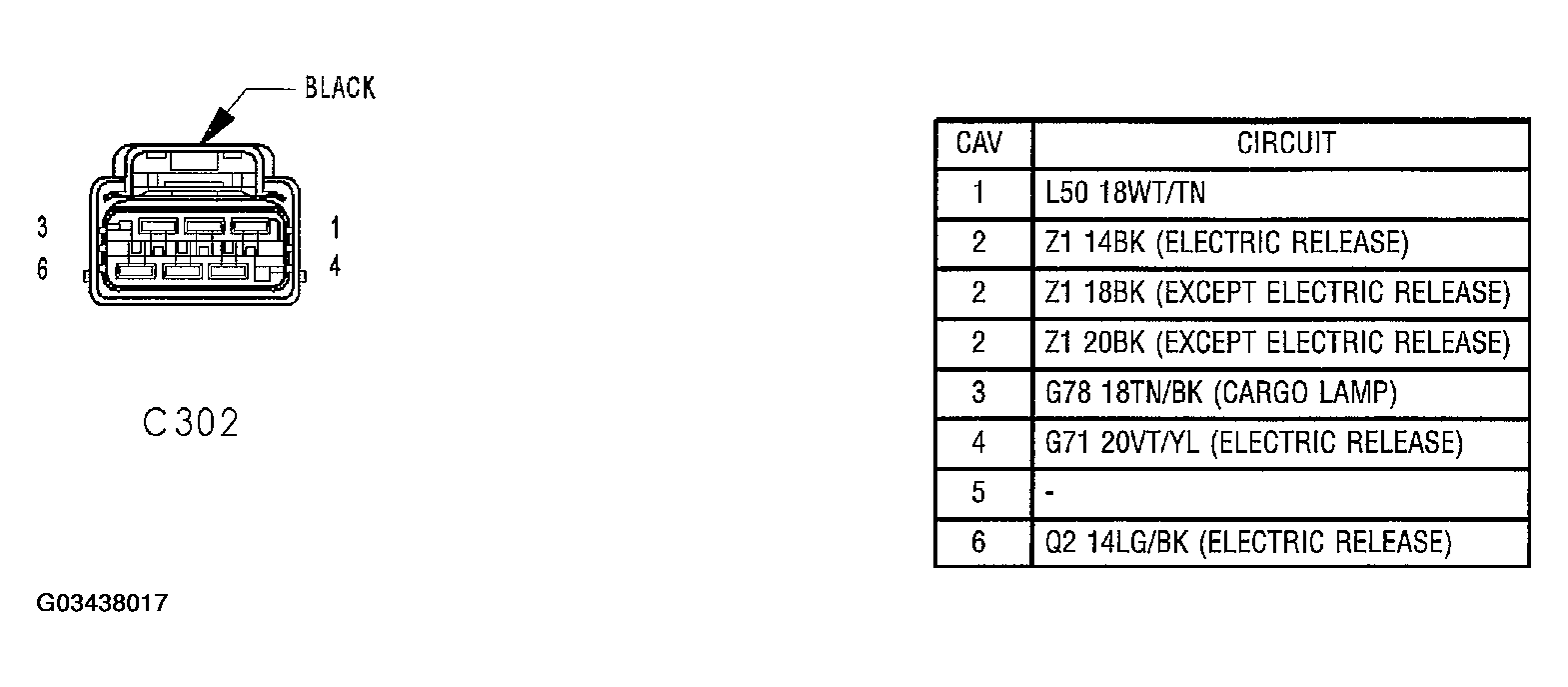

Fig 1: C302 Inline Connector End View
G03438017Courtesy of CHRYSLER GROUP, LLC

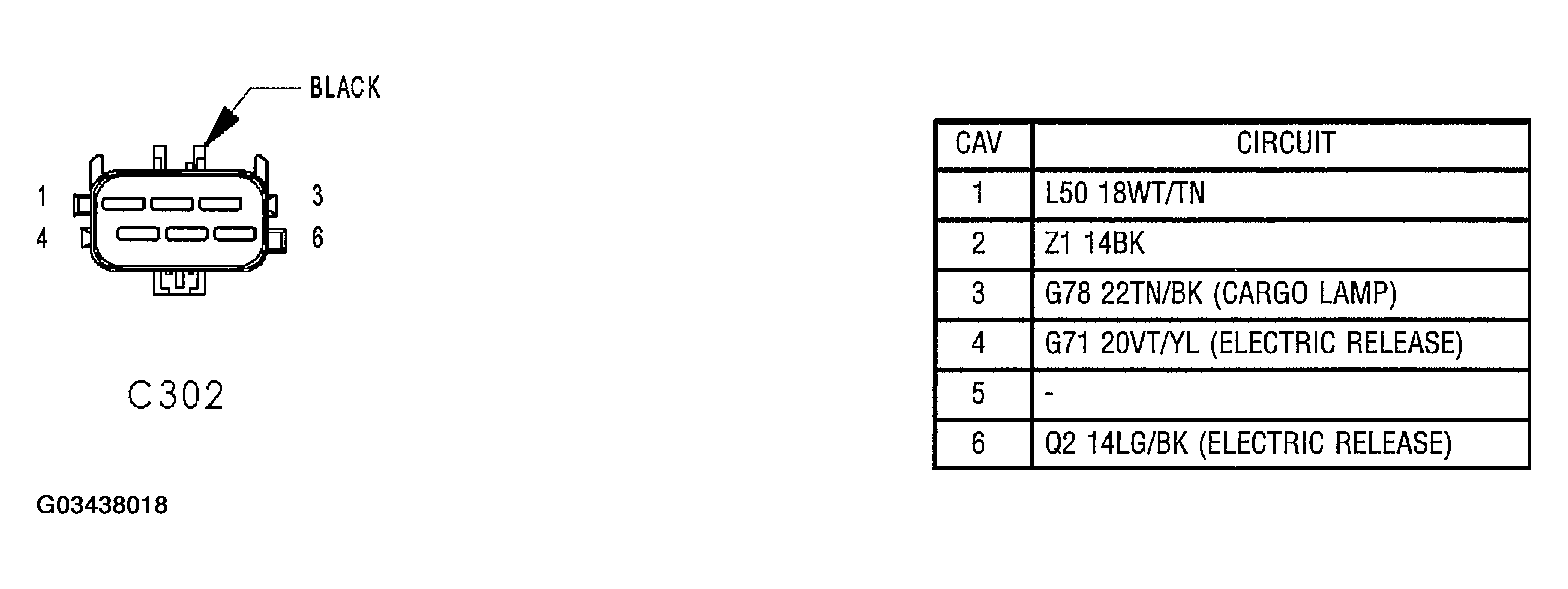

Fig 1: C302 Inline Connector End View
G03438018Courtesy of CHRYSLER GROUP, LLC
