Driver Power Window Switch Connector End View (C2)

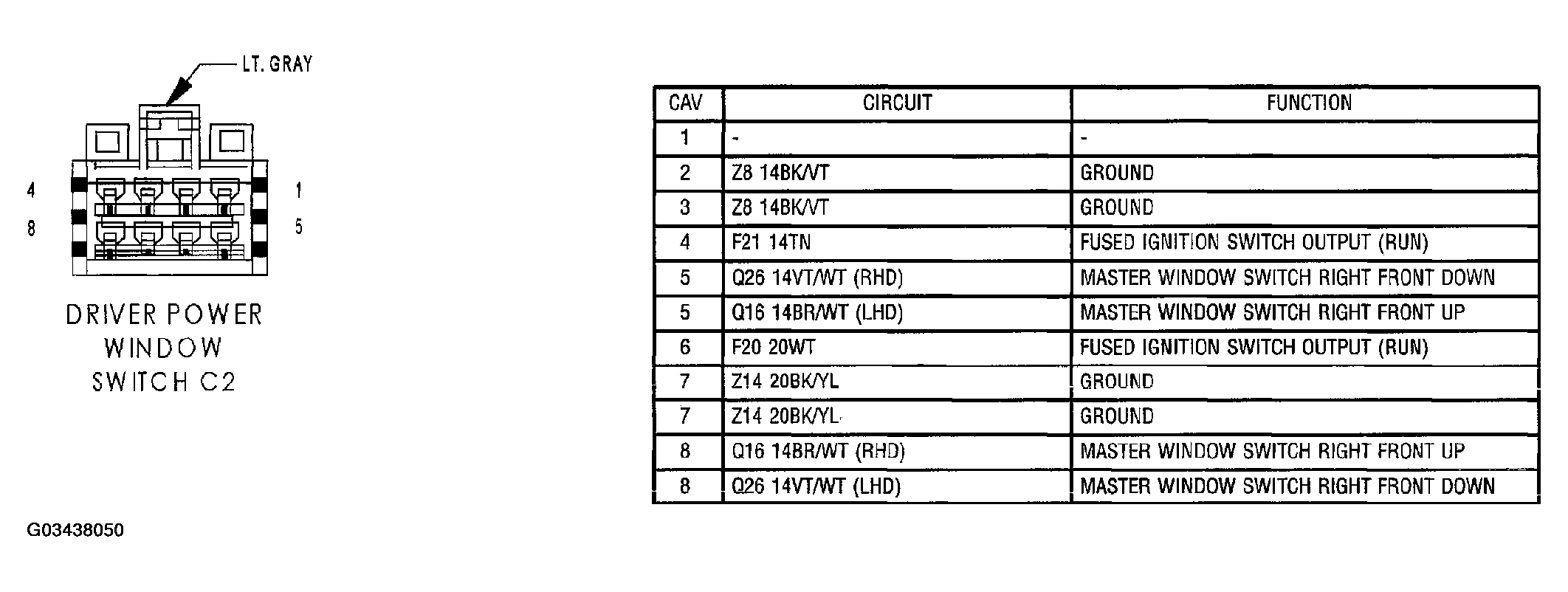

Fig 1: Driver Power Window Switch Connector End View (C2)
G03438050Courtesy of CHRYSLER GROUP, LLC
