Power Mirror Switch (LHD) Connector End View
Power Mirror Switch (LHD) Connector End View

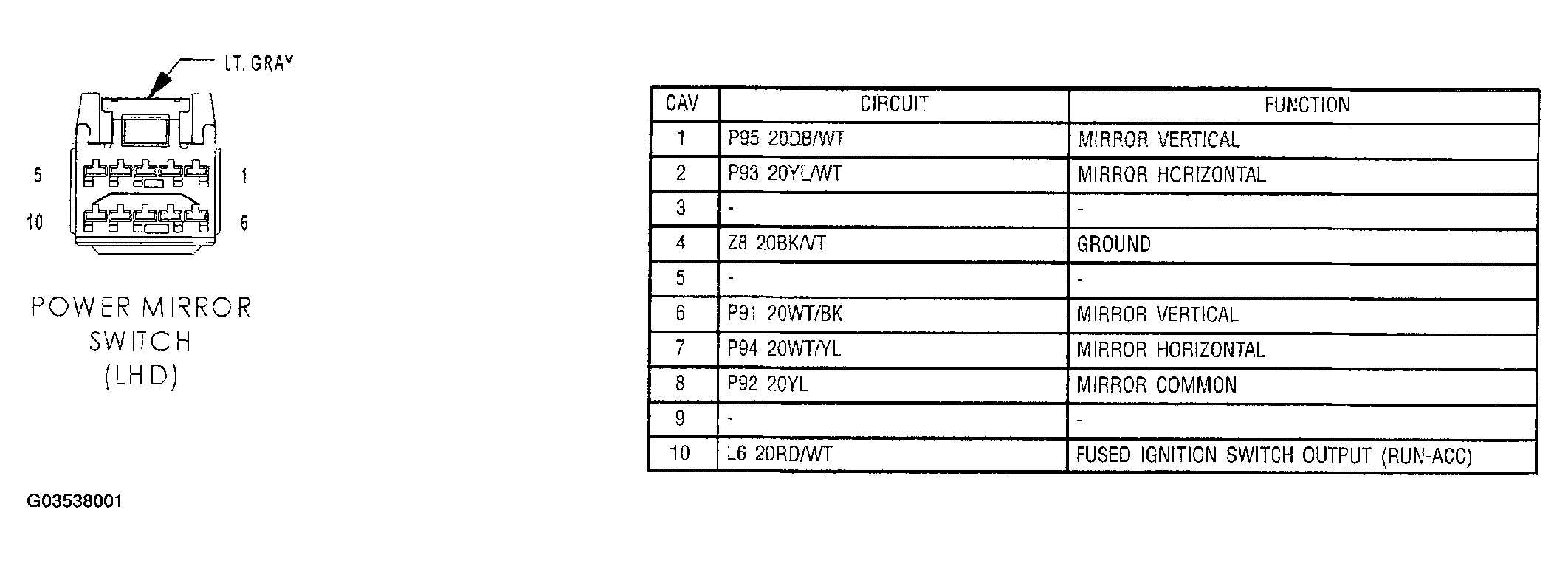

Fig 1: Power Mirror Switch (LHD) Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
