Right Rear Wheel Speed Sensor Connector End View
Right Rear Wheel Speed Sensor Connector End View

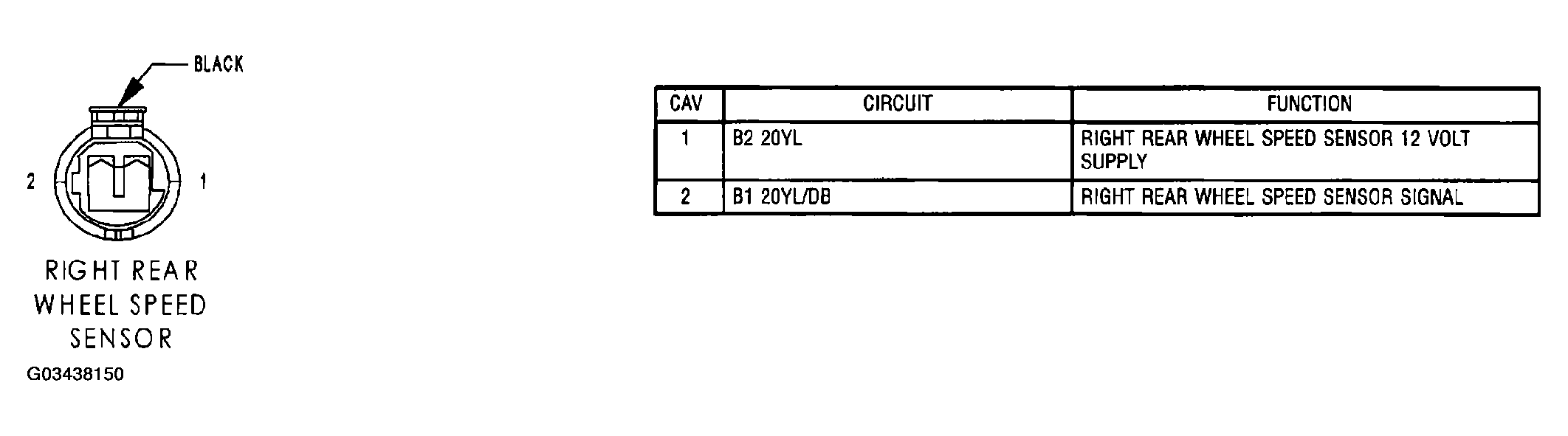

Fig 1: Right Rear Wheel Speed Sensor Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
