Transmission Solenoid / Pressure Switch Assembly Connector End View
Transmission Solenoid / Pressure Switch Assembly Connector End View

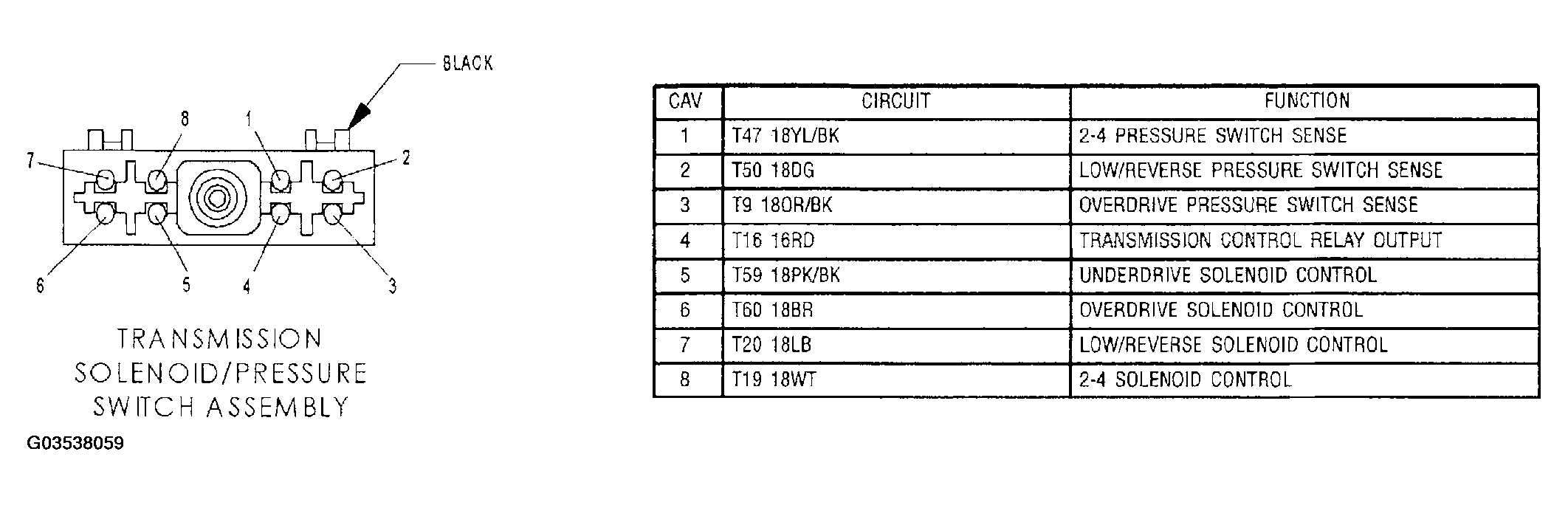

Fig 1: Transmission Solenoid / Pressure Switch Assembly Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
