Vehicle Speed Sensor Connector End View

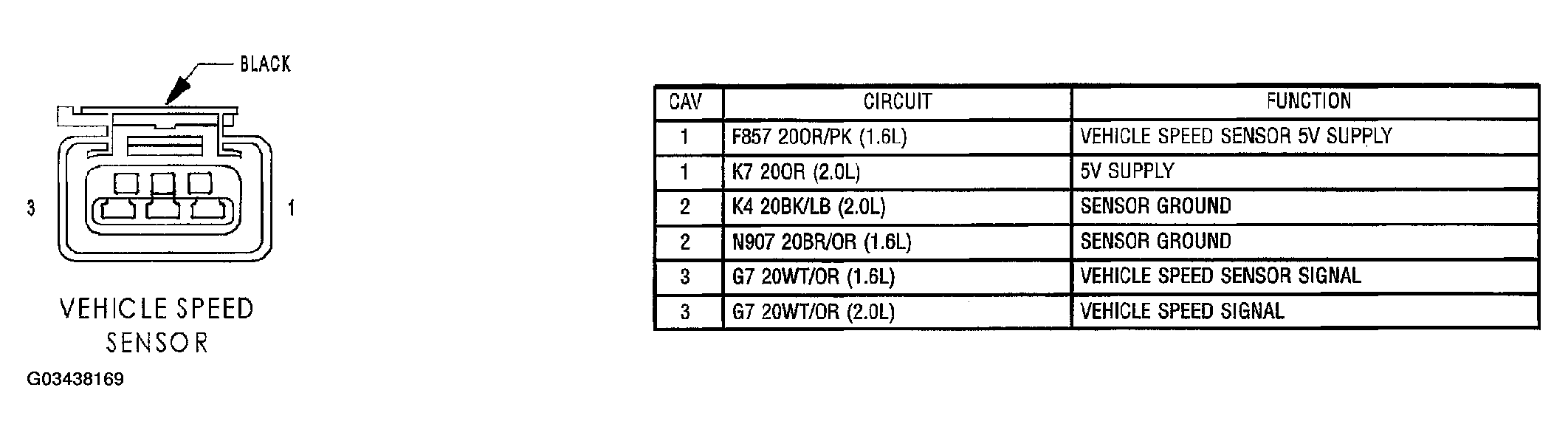

Fig 1: Vehicle Speed Sensor Connector End View
G03438169Courtesy of CHRYSLER GROUP, LLC
