Axle Seal: Removal

Remove axle shaft. Refer to AXLE SHAFTS for the correct procedures.
Insert a flat blade pry tool at outer edge of axle shaft seal. (Fig 1).

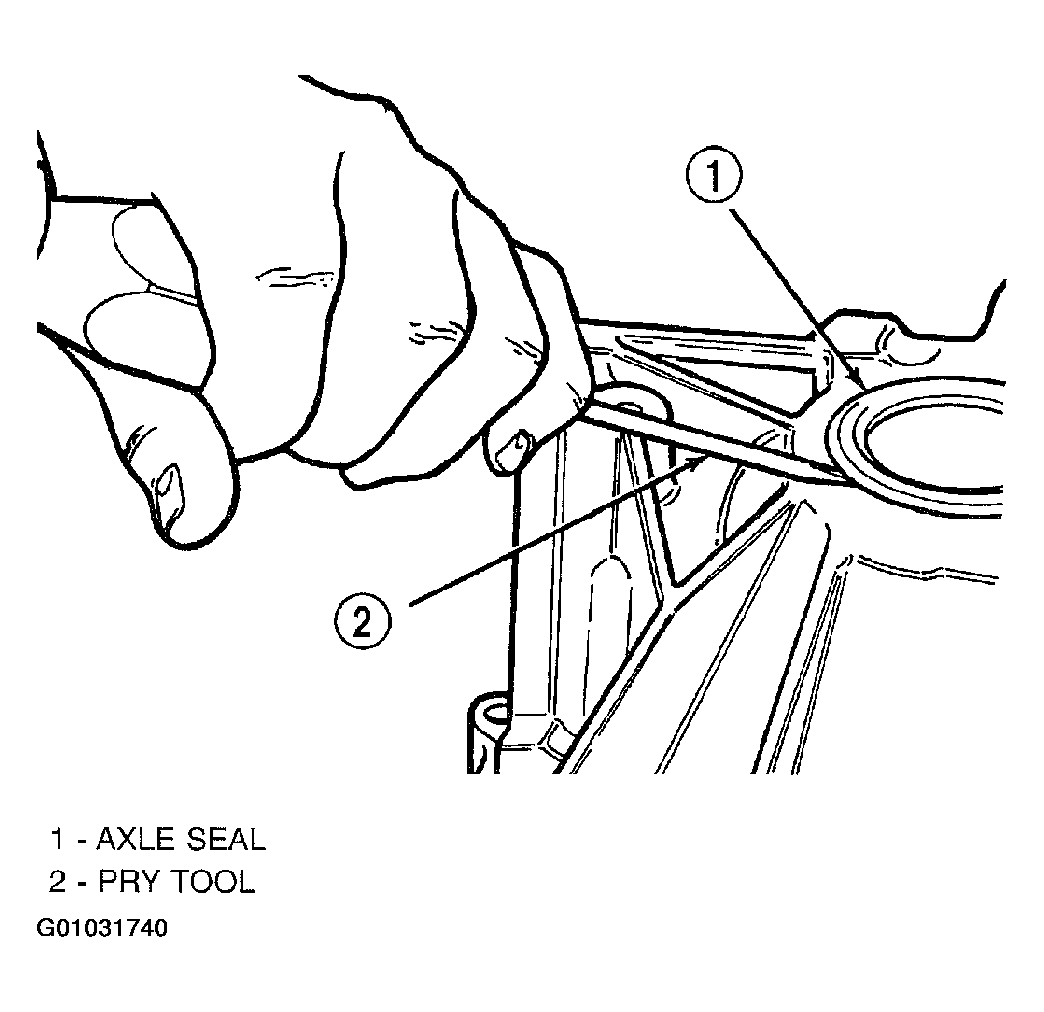

Fig 1: Removing Axle Shaft Seal
Courtesy of DAIMLERCHRYSLER CORP.
Tap on the pry tool with a small hammer and remove axle shaft seal.
