Shift Rail Bushing: Removal
Thread tool #6786 into shift rail bushing.
Install slide hammer #3752 onto tool.
Remove bushing using slide hammer and tool assembly. (
Fig 1
).

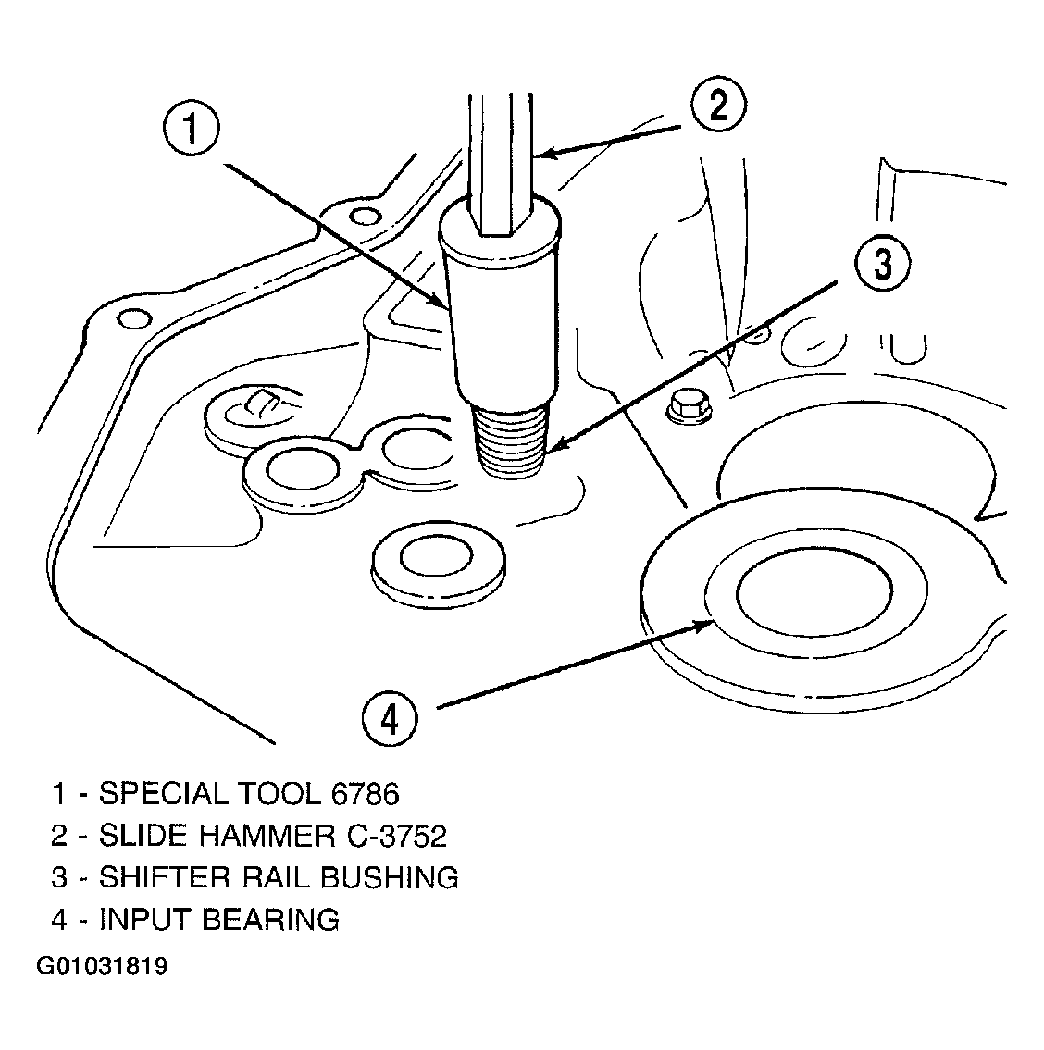

Fig 1: Removing/Installing Shift Rail Bushing
Courtesy of DAIMLERCHRYSLER CORP.
