Shift Selector Shaft Bushing: Removal

  1. Remove selector shaft.
  2. Thread tool #6786 into bushing.
  3. Install slide hammer #3752 onto tool and remove bushing using slide hammer. (Fig 1).

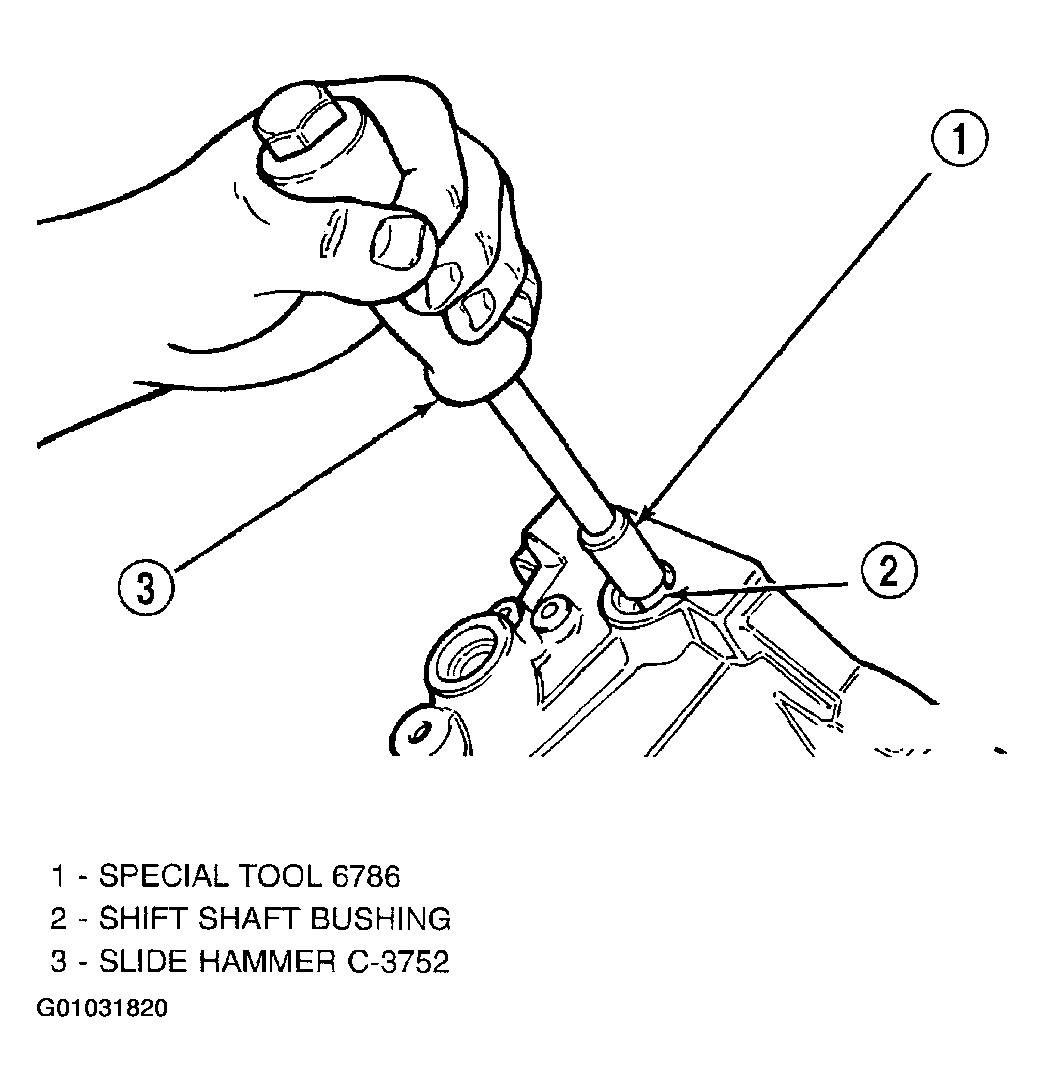

    Fig 1: Removing Selector Shaft Bushing
    G01031820Courtesy of DAIMLERCHRYSLER CORP.
