Vehicle Speed Sensor: Installation

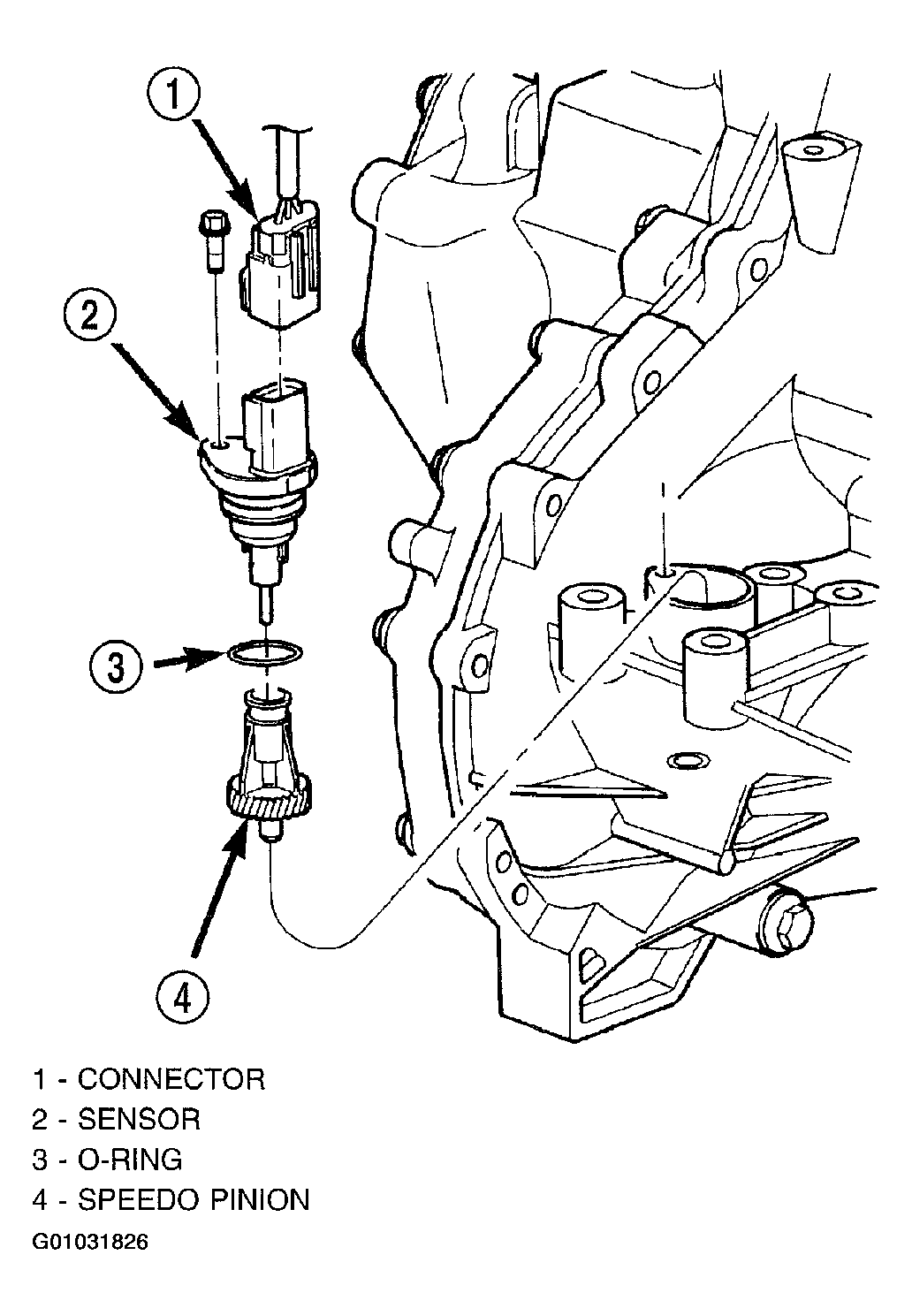

- Install pinion gear to speed sensor. (Figure).
- Using a NEW O-ring, install the speed sensor to the transaxle. (Figure).
- Install the bolt and torque to 7 N.m (60 in. lbs.).
- Connect speed sensor connector. (Figure).
- Lower vehicle and road test to verify proper speedometer operation.
