Brake Lamp Switch Connector End View
Brake Lamp Switch Connector End View

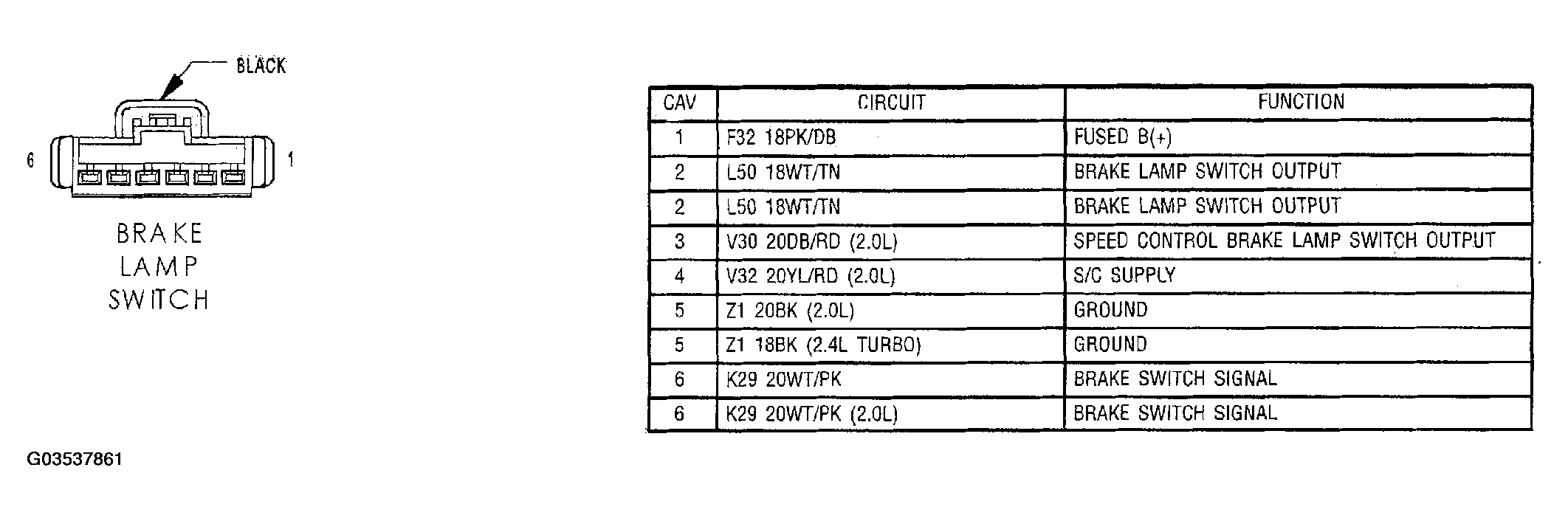

Fig 1: Brake Lamp Switch Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
