Powertrain Control Module C2 Connector End View (2.0L -- Orange 38-Way)

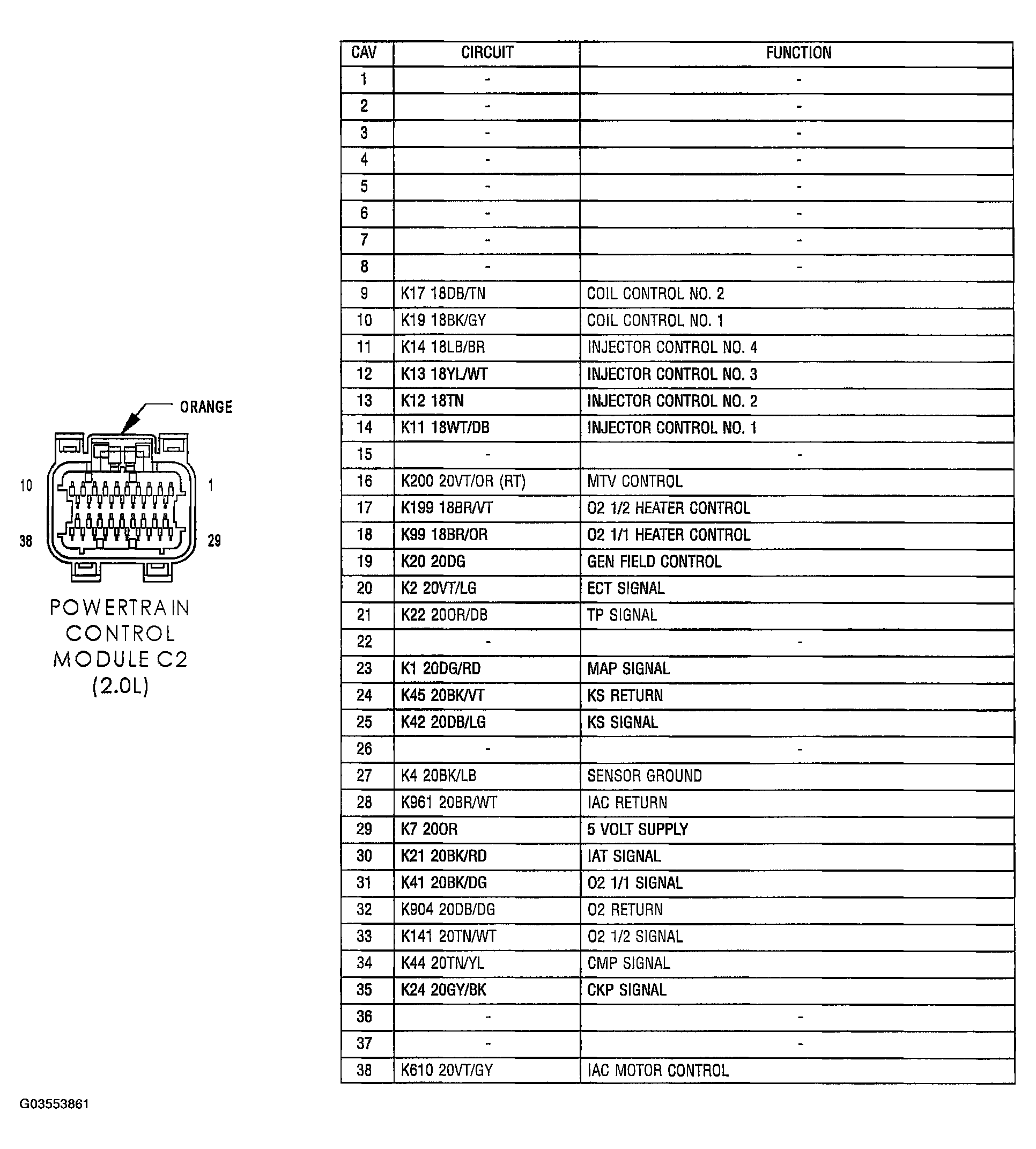

Fig 1: Powertrain Control Module C2 Connector End View (2.0L -- Orange 38-Way)
G03553861Courtesy of CHRYSLER GROUP, LLC
