Powertrain Control Module C2 Connector End View (2.4L Turbo -- Gray 38-Way)

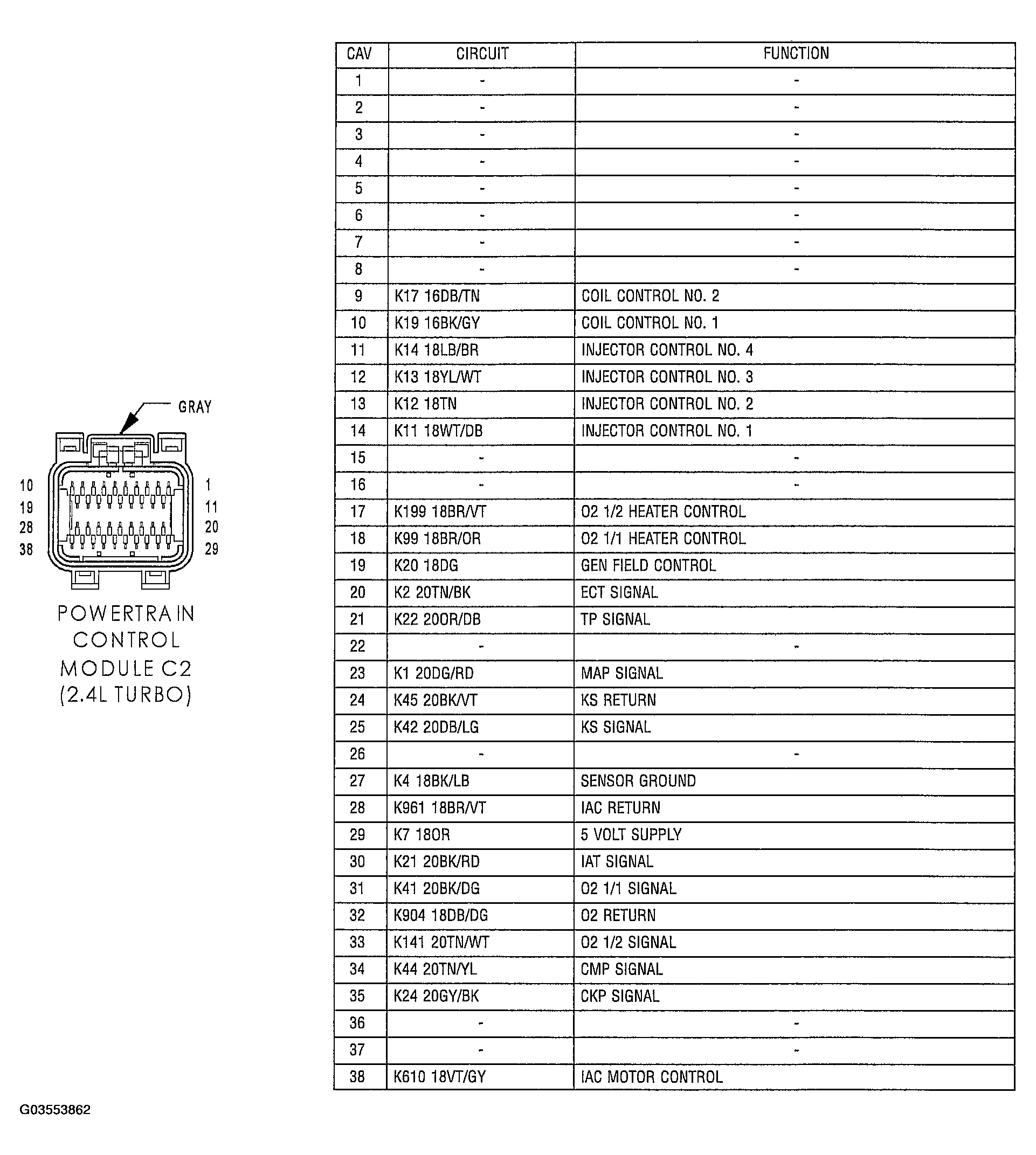

Fig 1: Powertrain Control Module C2 Connector End View (2.4L Turbo -- Gray 38-Way)
G03553862Courtesy of CHRYSLER GROUP, LLC
