Air Cleaner Element: Installation

  1. Install air cleaner element on to throttle body and push towards the throttle body and past lip in air cleaner box bottom. (Fig 1).

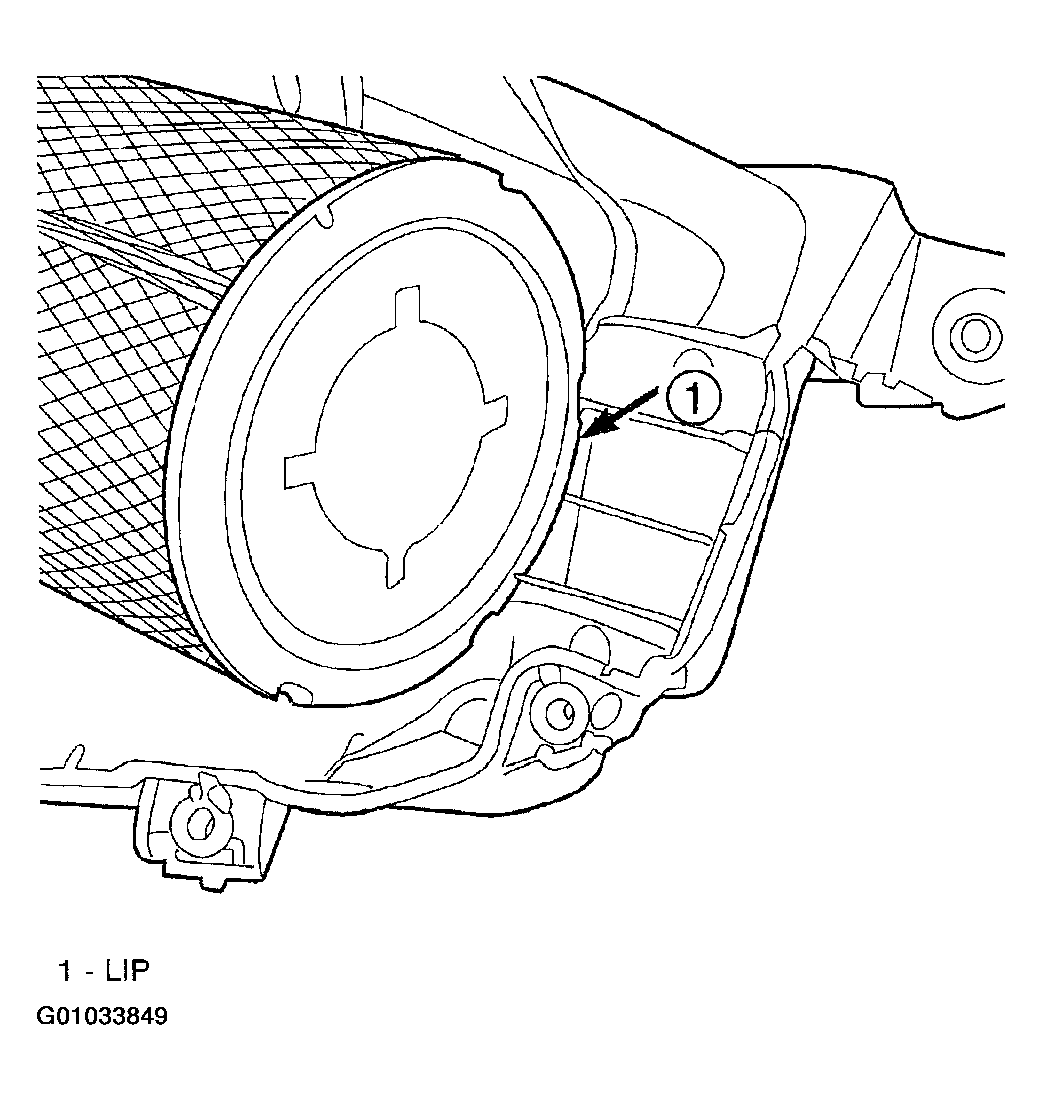

    Fig 1: Identifying Air Cleaner Element
    G01033849Courtesy of DAIMLERCHRYSLER CORP.
  2. Install lid and tighten screws.
