Right Mount: Installation

  1. Position the mount into the original position on body frame rail. (Figure).
    NOTE: Engine mount must be installed in the original position on body frame rail. If mount was not marked or frame rail was replaced, perform the following procedure.
  2. Perform the following procedure if mount position was not previously marked or the frame rail was replaced:
    1. Insert the new mount loosely in frame rail.
    2. Align the four holes in the mount with the mating holes in the rail such that the holes are concentric (frame rail holes centered in the mount holes).
    3. Using a permanent ink marker or equivalent, mark the position of engine mount to the body frame rail while maintaining mounting hole concentricity.

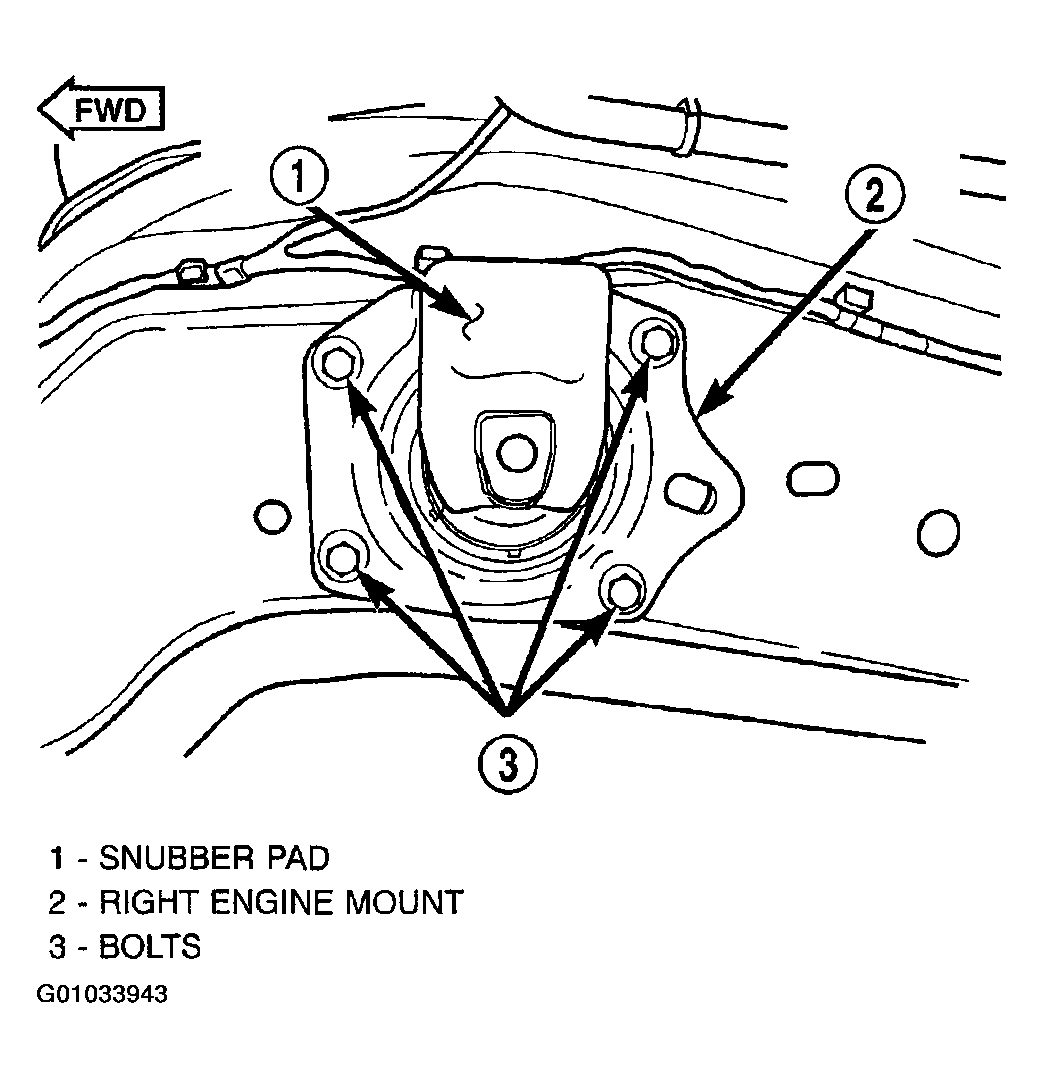

  3. Ensure the mount maintains originally marked position and install mount bolts. Tighten bolts to 28 N.m (250 in. lbs.). (Figure).
  4. Install the engine mount bracket. (Refer to ENGINE MOUNT BRACKET ).

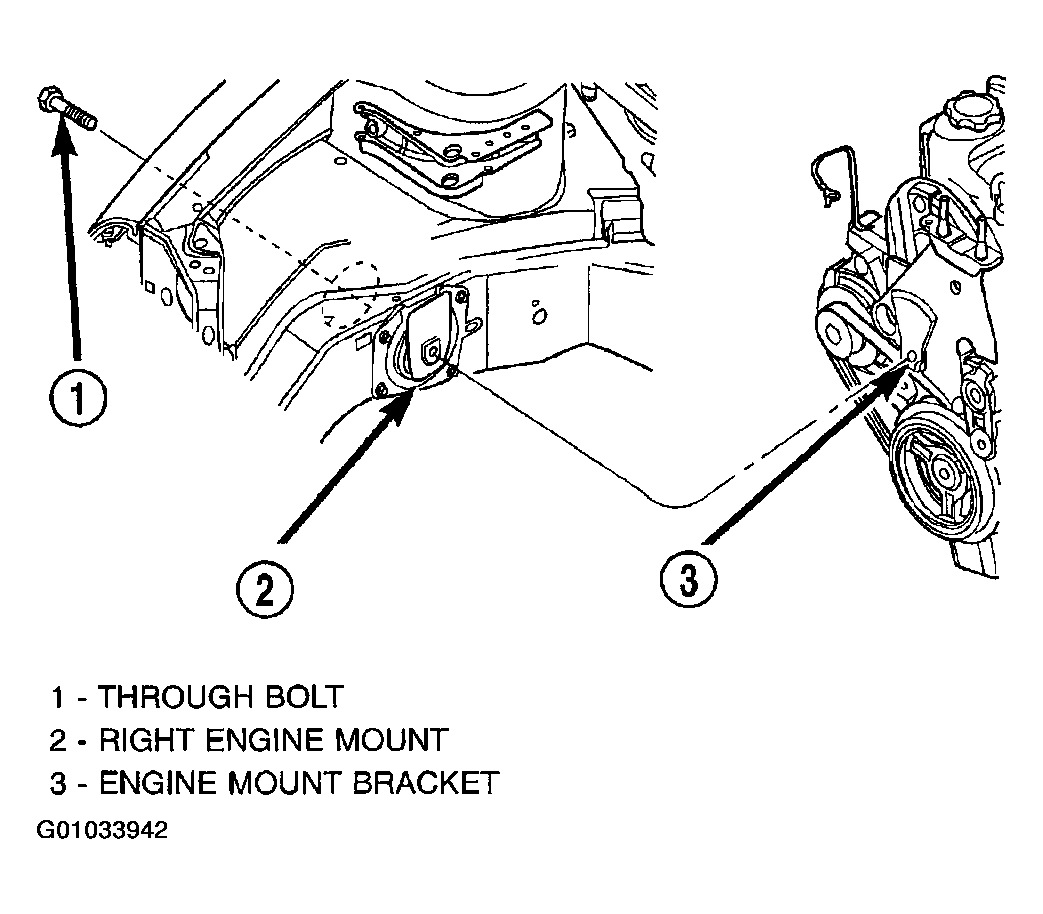

  5. Install through bolt attaching right engine mount to bracket and tighten to 118 N.m (87 ft. lbs.). (Figure).
  6. Remove the support from under engine.
  7. Install the upper and lower engine torque struts. (Refer to TORQUE STRUT ).
  8. Install the crankshaft vibration damper. (Refer to VIBRATION DAMPER ).
  9. Install the accessory drive belts. (Refer to COOLING SYSTEMS ).
  10. Perform torque strut adjustment procedure. (Refer to TORQUE STRUT ).
