Airbag Control Module Connector End View
Airbag Control Module Connector End View

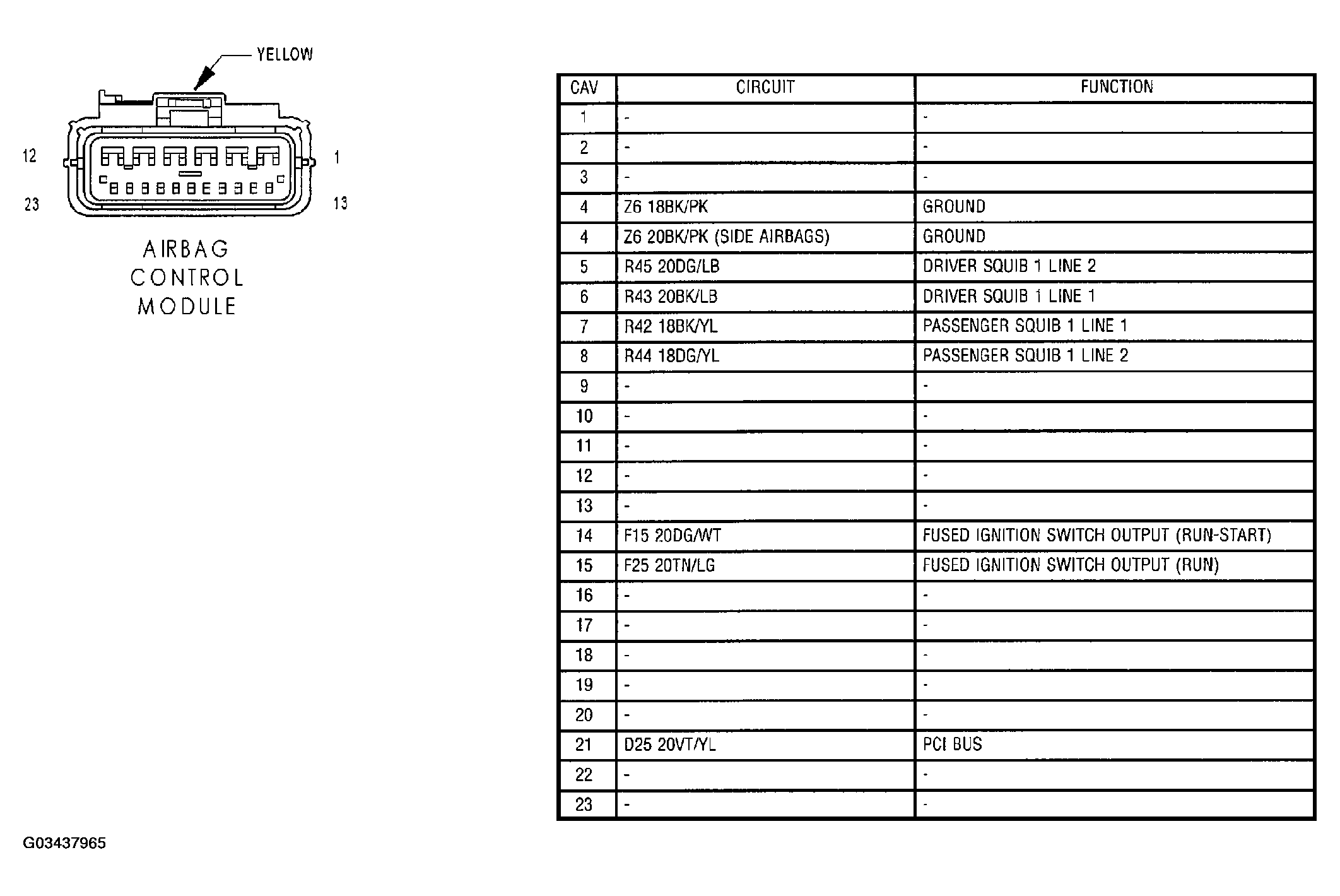

Fig 1: Airbag Control Module Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
