Camshaft Position Sensor Connector End View
Camshaft Position Sensor Connector End View

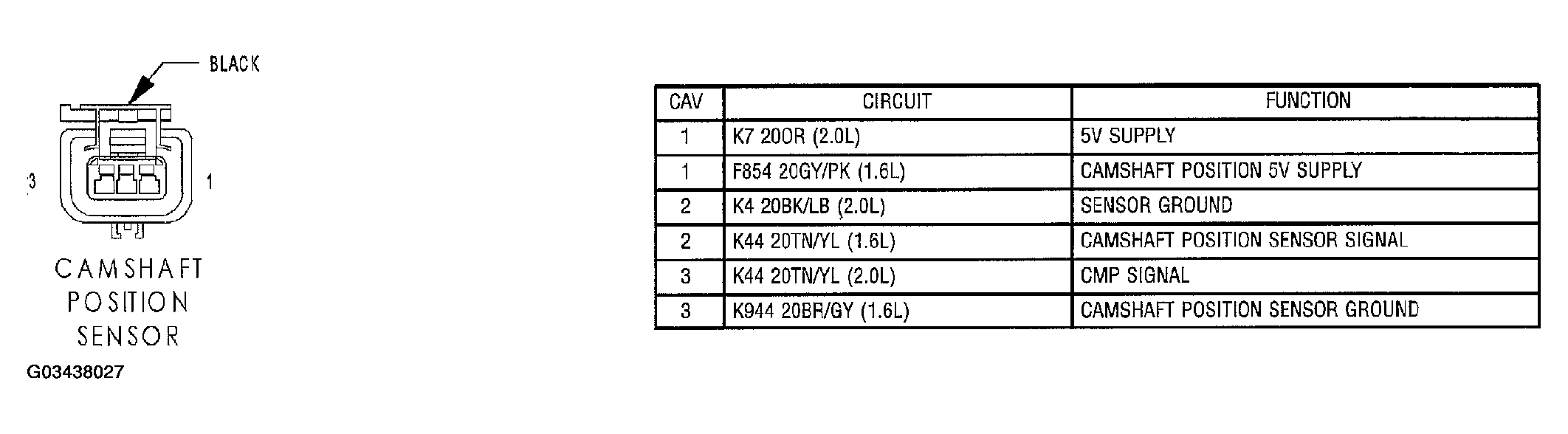

Fig 1: Camshaft Position Sensor Connector End View
Courtesy of CHRYSLER GROUP, LLC
