Clockspring Connector End View

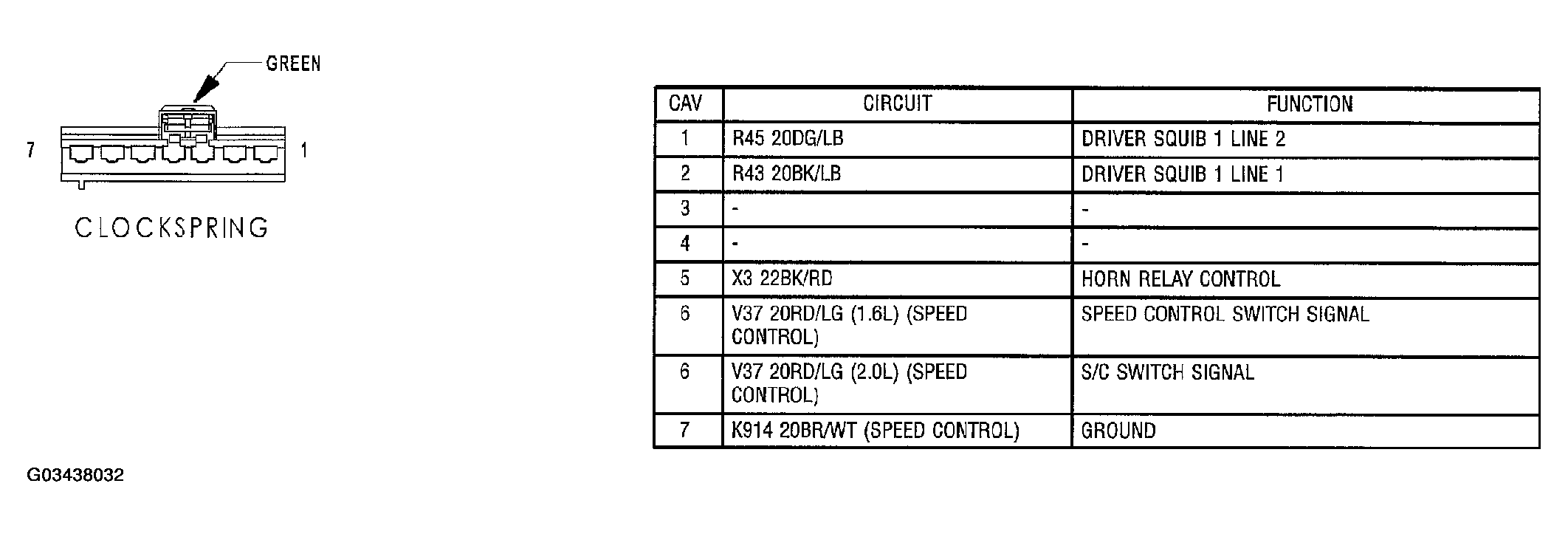

Fig 1: Clockspring Connector End View
G03438032Courtesy of CHRYSLER GROUP, LLC
